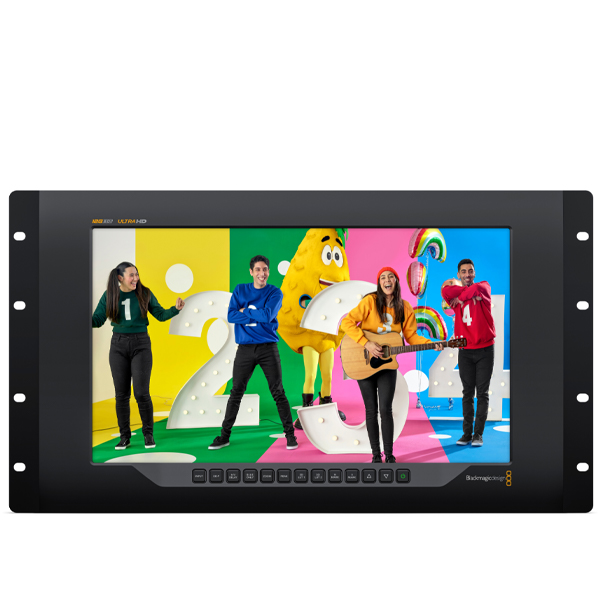

BLACKMAGIC DESIGN

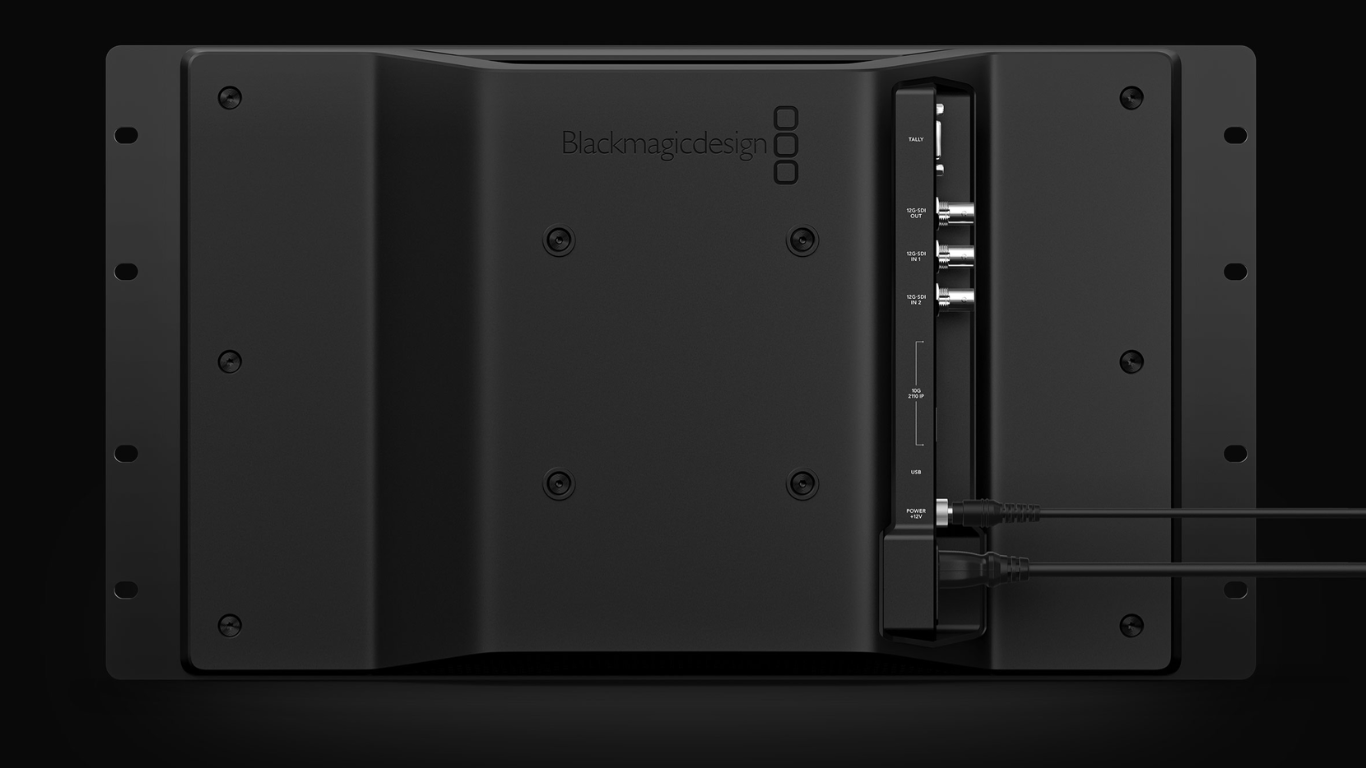

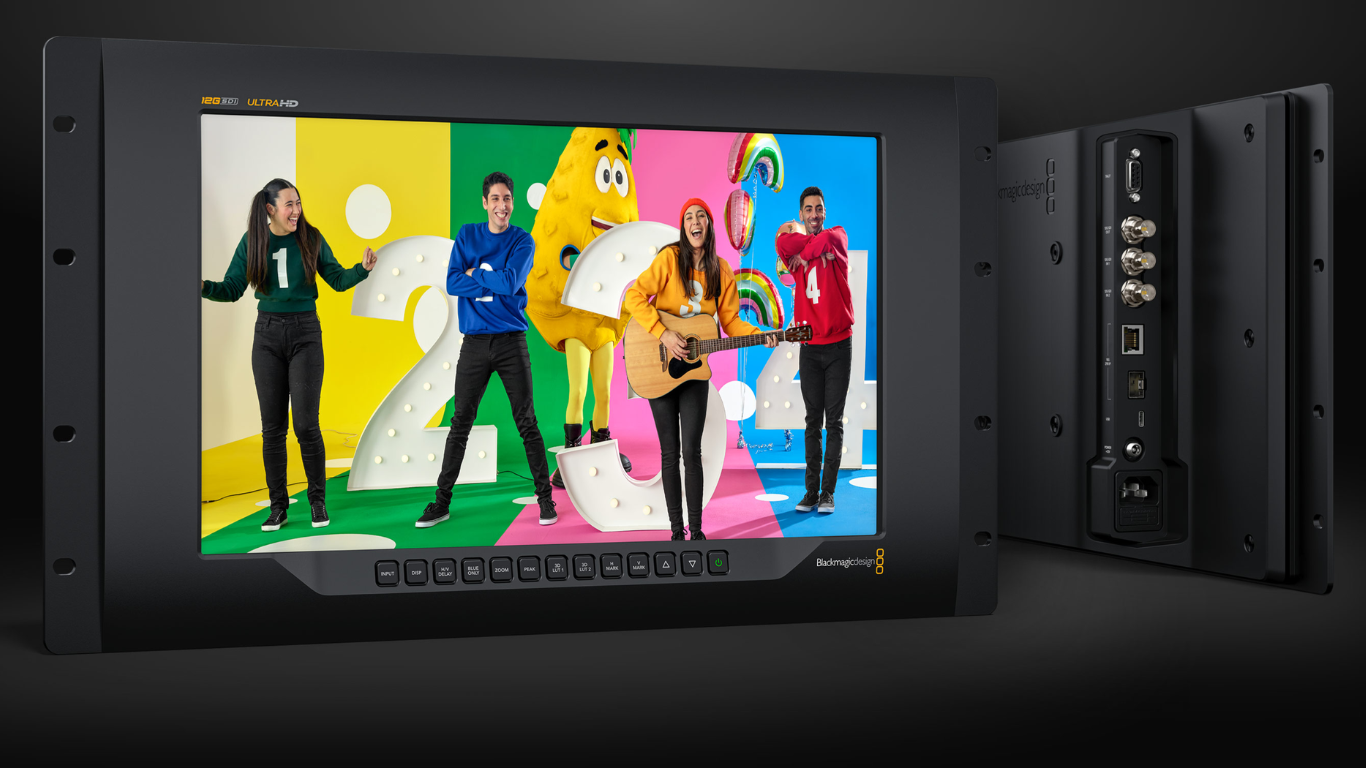

Connections

• SDI Inputs    2
• It is important to use a good quality HD cable with 12G-SDI products. As an example, we have used an industry standard Belden 1694A cable when testing our 12G-SDI products.
• We recommend using the following cables:
  • Belden 1694A
  • Canare L-4.5CHD
• Distance for cable lengths are:
  • 3G-SDI    100 meters
  • 6G-SDI    80 meters
  • 12G-SDI    50 meters
• SDI Outputs    1 loop out (Reclocked video output that automatically switches to input selection)
• SDI Rates    270Mb, 1.5G, 3G, 6G, 12G
• Optical Video Input    SFP Optical Fiber connector cage (Supports 2110 IP video and optical SDI)

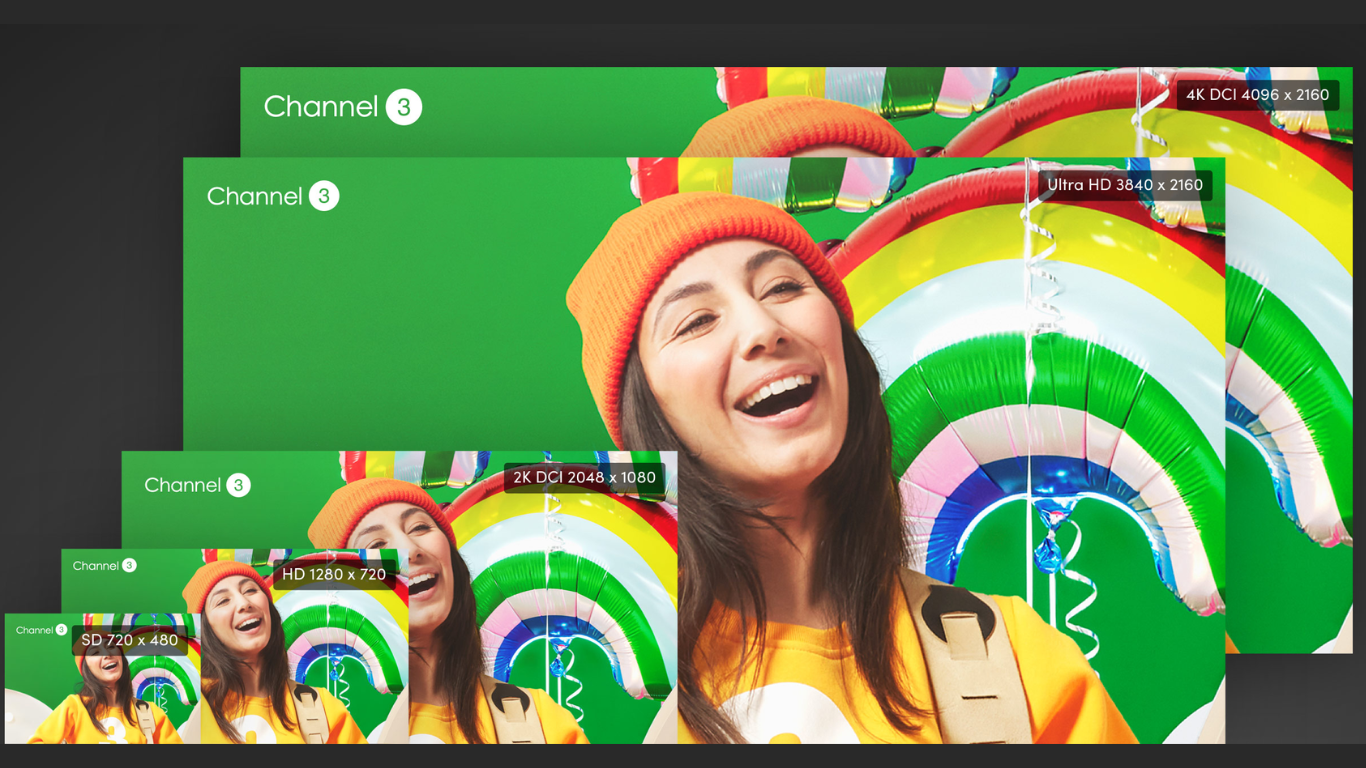

• Multi Rate Support    Auto detection of 4K, Ultra HD, 2K, HD or SD inputs
• Updates and Configuration    USB
• Ethernet    1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration, and firmware updates
• Tally    9-pin D connector

Standards

• SD Format Support    525i59.94 NTSC, 625i50 PAL
• HD Format Support    720p50, 720p59.94, 720p60; 1080i50, 1080i59.94, 1080i60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60; 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
• 2K Format Support    2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI; 2KPsF23.98, 2KPsF24, 2KPsF25, 2KPsF29.97, 2KPsF30
• Ultra HD Format Support    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
• 4K Format Support    4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
• SDI Compliance    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level A and B, SMPTE 425M, SMPTE 2082
• SDI Color Space    REC 601, REC 709
• SDI Auto Switching    Automatically selects between SD, HD, 3G, 6G, and 12G-SDI
• Video Sampling    4:2:2 and 4:4:4
• IP Video Compliance    SMPTE 2110-20 (Uncompressed Video); IGMP v2; SMPTE 2110-21 (Traffic Shaping): Sender: Narrow, Receiver: Narrow, Wide Synchronous, Asynchronous; SMPTE 2110-30 (PCM): Audio Conformance level: Level C; SMPTE 2110-40 (Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata
• Precision Time Protocol    IEEE 1588‑2008 (PTP v2); ST 2059‑1; ST 2059‑2

NMOS Specifications

• NMOS IS‑04    Discovery and Registration v1.3.2, Peer‑to‑peer via mDNS/DNS‑SD
• NMOS IS-05    Connection Management v1.1.2
• NMOS BCP‑002‑01    Natural Grouping
• NMOS BCP‑004‑01    Receiver capabilities
• Codec    Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video

Software

• Internal Software Upgrade    Via included firmware updater software

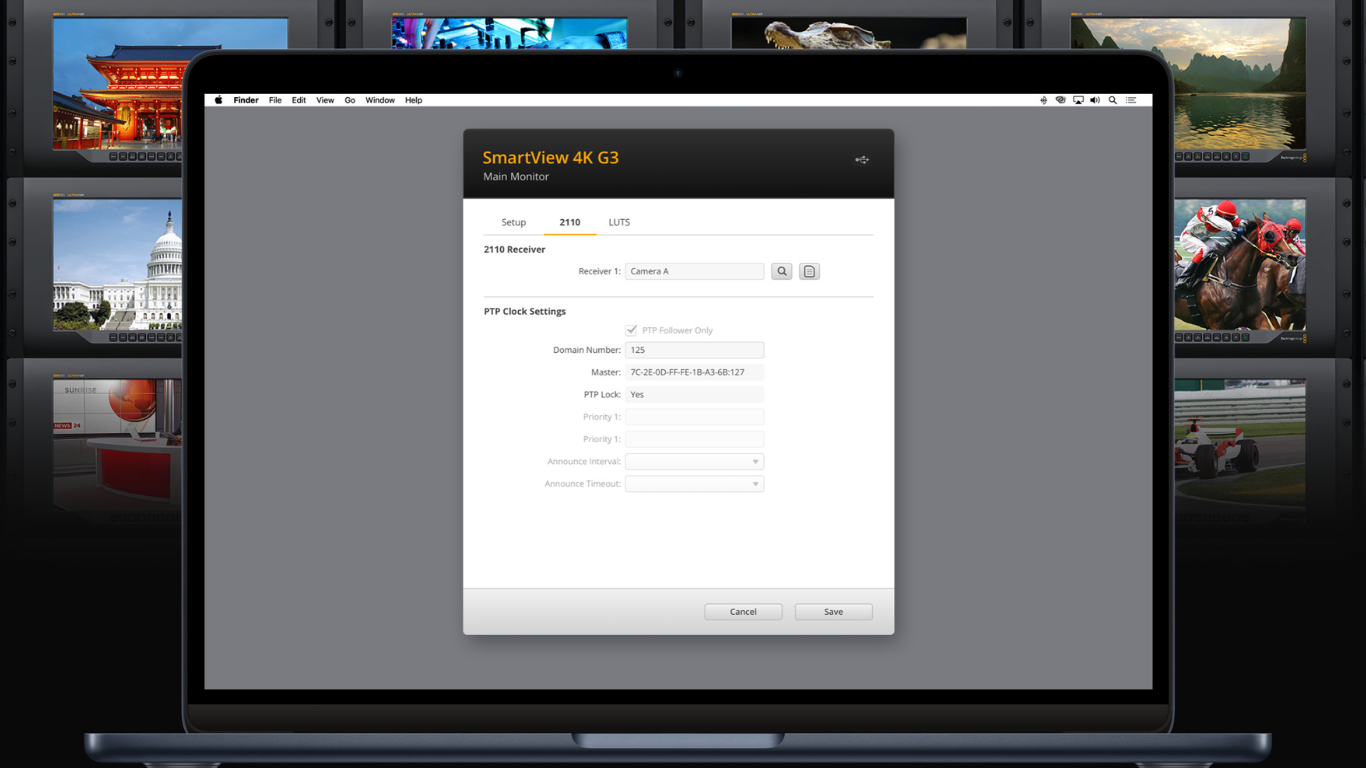

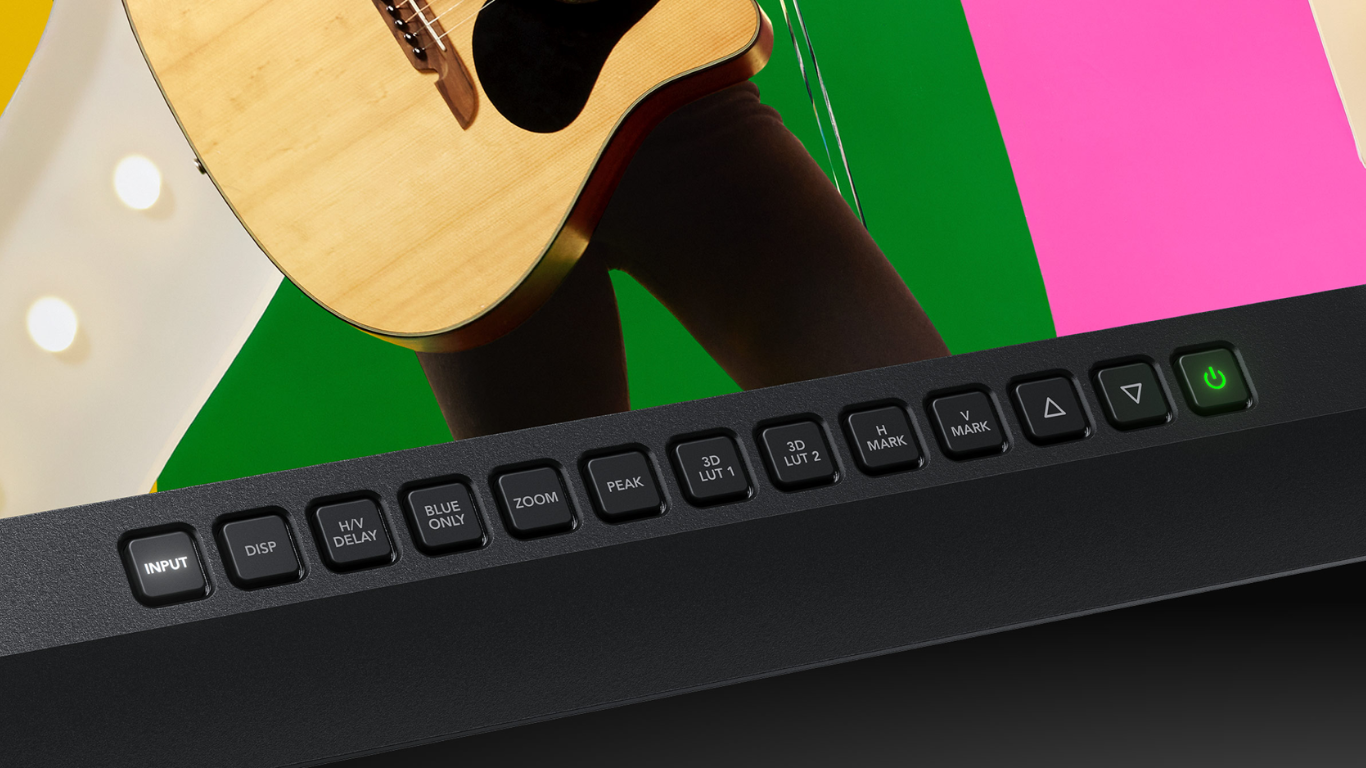

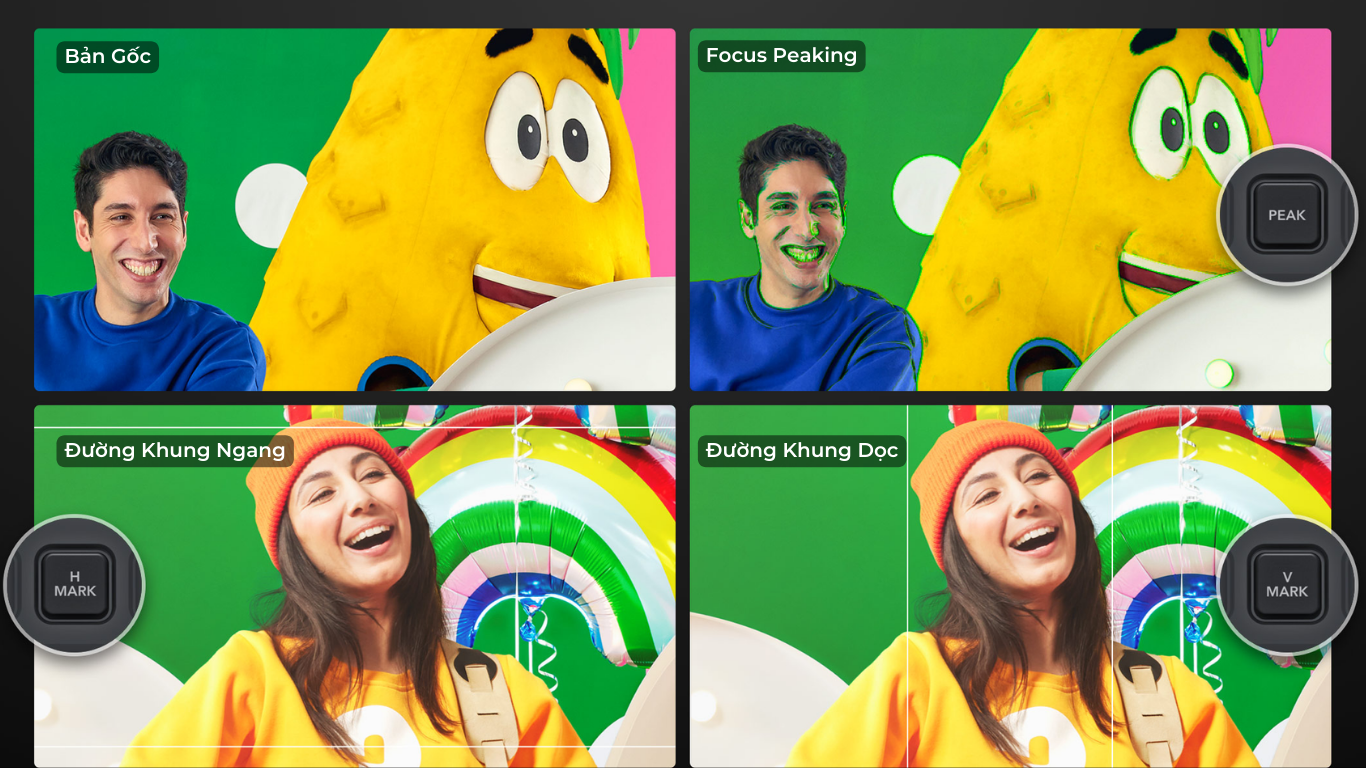

• Settings Control    Via USB or Ethernet

Operating Systems

• Mac    Mac 12.0 Monterey, Mac 13.0 Ventura or later
• Windows    Windows 10, 64-bit; Windows 11

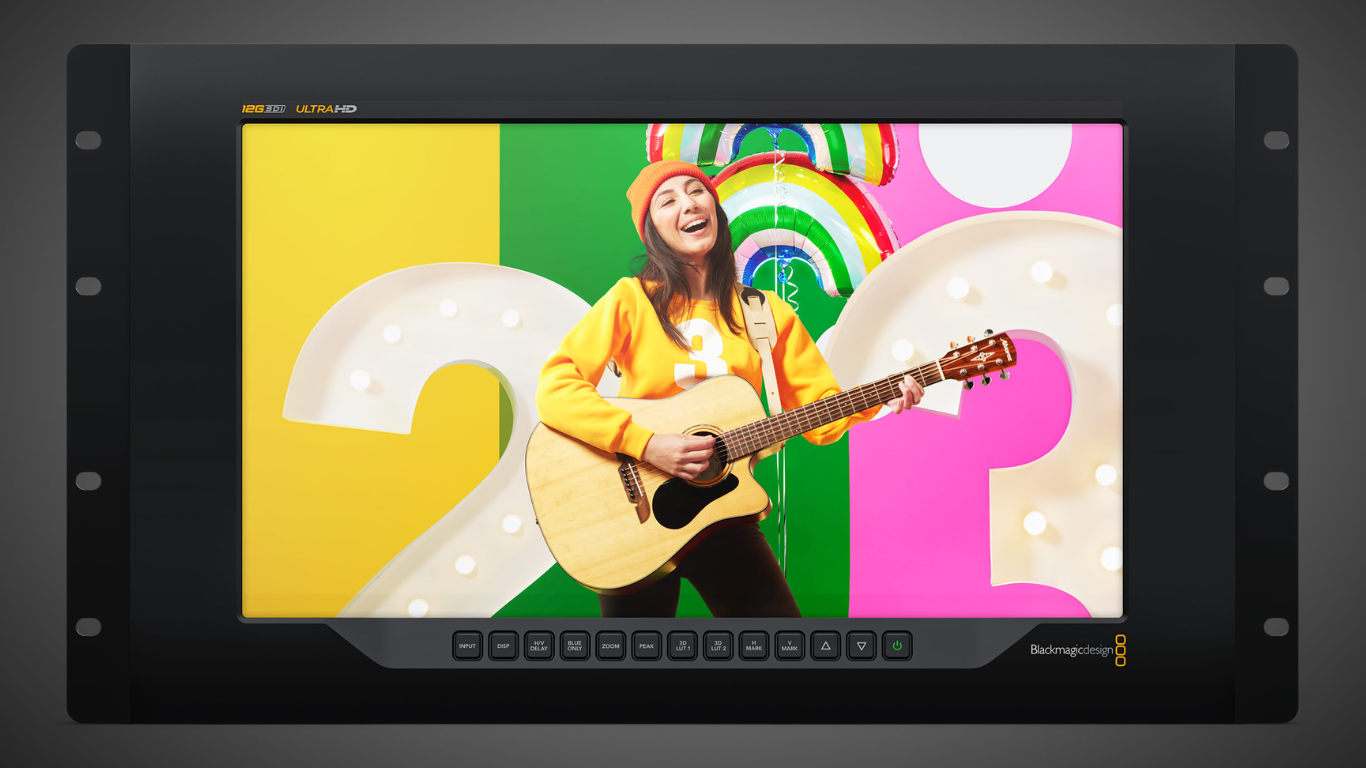

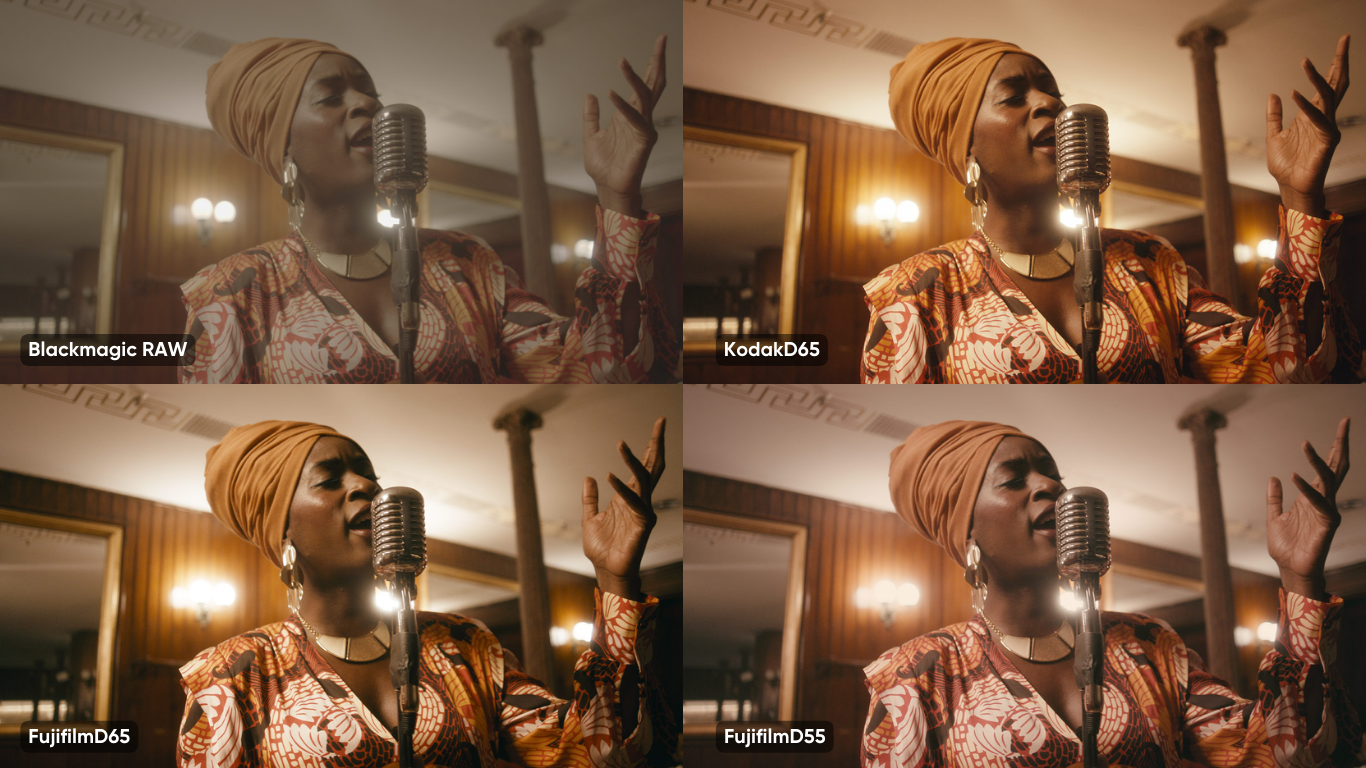

Display

• Display Element    15.6" TFT Active Matrix LCD
• Display Resolution    3840 x 2160 pixels
• Response    25 ms
• Contrast Ratio    1000:1
• Color Depth    16.7 million colors
• Power Requirements
• Power Supply    1 x Internal 100 - 240V AC 50/60Hz
• Power Inputs    1 x IEC C14 socket for AC power; 1 x 5.5mm barrel +12V DC In for external power supply or battery use
• Power Consumption    24 W

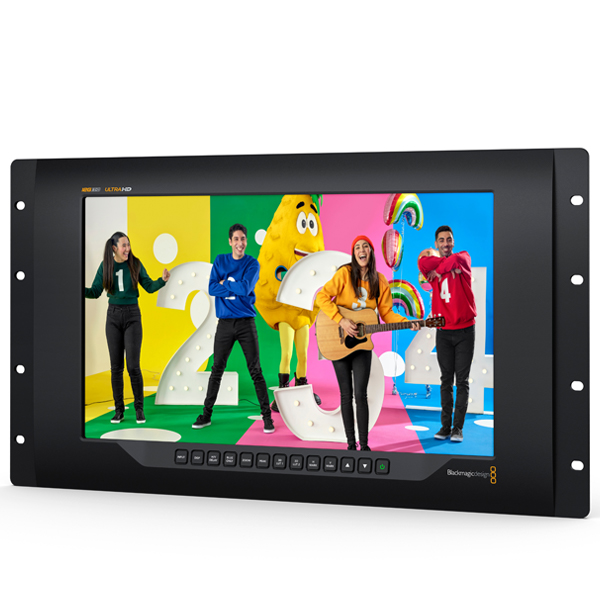

Physical Installation

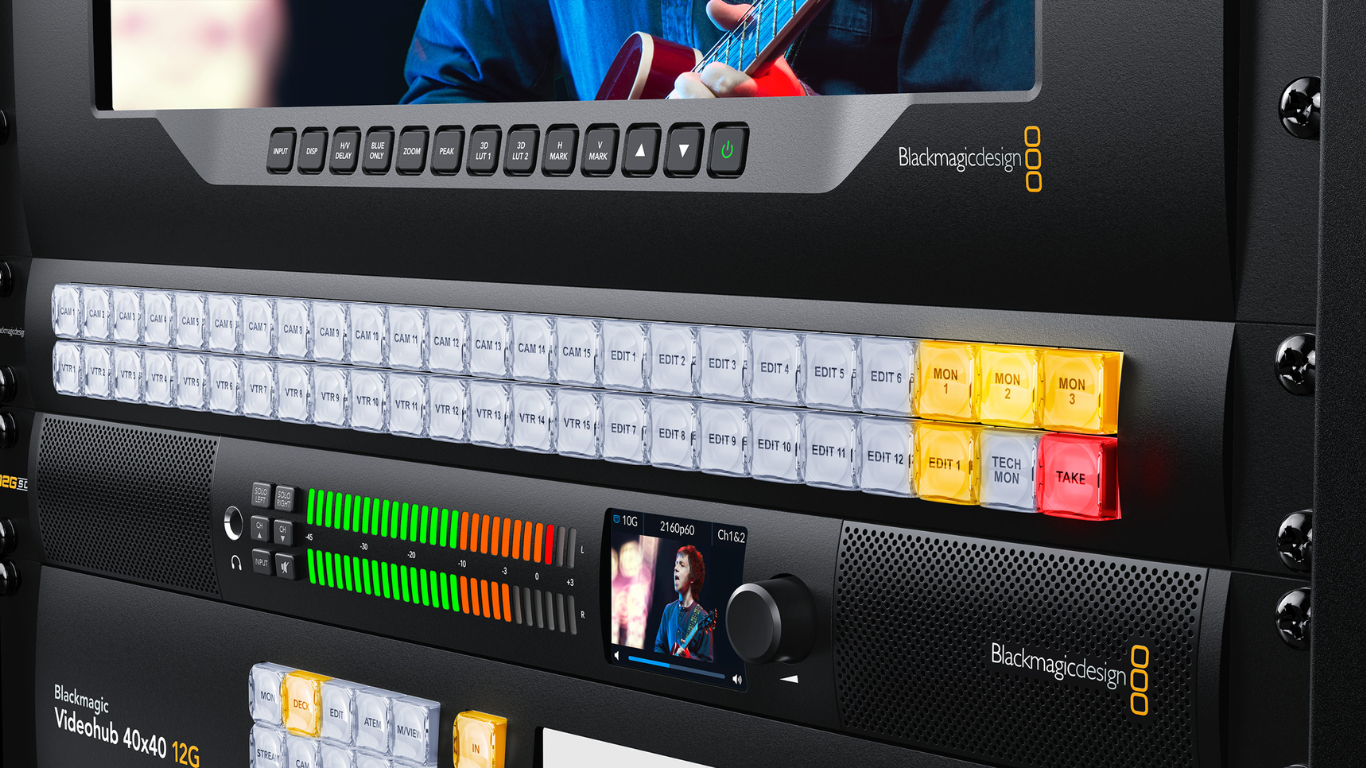

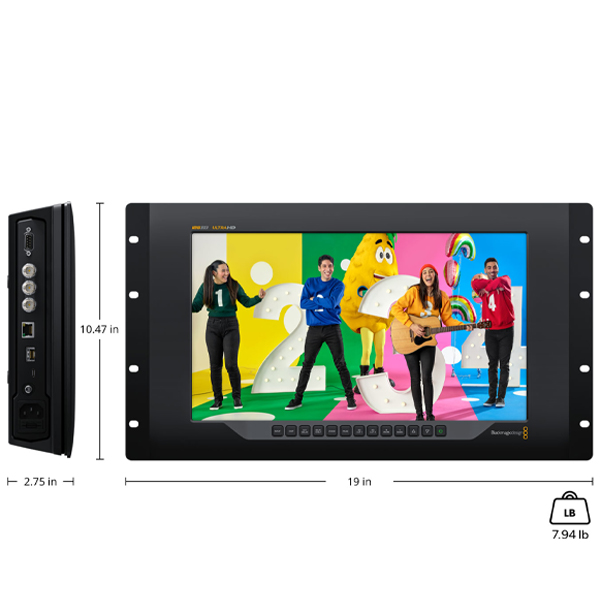

• Rack Unit    6 rack units

Environmental Specifications

• Operating Temperature    0° to 40° C (32° to 104° F)
• Storage Temperature    -20° to 60° C (-4° to 140° F)
• Relative Humidity    0% to 90% non-condensing

What's Included

• Items    SmartView 4K G3, Welcome wallet with QR code for software download

Warranty

• 12 Months Limited Manufacturer's Warranty
