BLACKMAGIC DESIGN

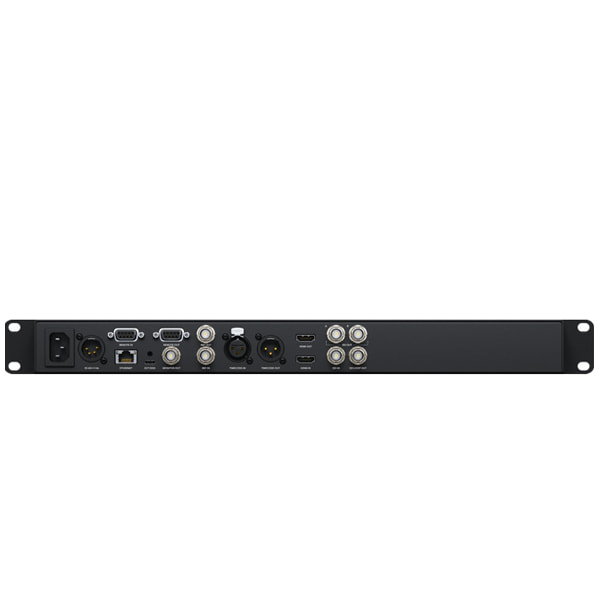

Connections

• SDI Video Inputs    1
• SDI Video Outputs    2
• SDI Monitor Outputs    1
• SDI Rates    270Mb, 1.5G, 3G, 6G
• HDMI 2.0 Video Inputs    1
• HDMI 2.0 Video Outputs    1
• Built-in Speaker    Mono
• Audio Output    1 x 6.35 mm headphone jack
• Screen    2.2 inch LCD
• Timecode Connections    1 x XLR In, 1 x XLR Out
• Reference Connections    1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst
• SDI Audio Inputs    16 channels embedded audio
• SDI Audio Outputs    16 channels embedded audio
• HDMI Audio Inputs    8 channels embedded audio
• HDMI Audio Outputs    8 channels embedded audio
• Remote Control    1 x RS-422 In, 1 x RS-422 Out
• Recorder Configuration    Via user interface or Blackmagic HyperDeck Ethernet Protocol
• Ethernet    1Gb/s
• Computer Interface    1 x USB Type-C 3.0 (up to 5Gb/s) for external drive recording, webcam out, software configuration, and updates
• HyperDeck Studio HD Pro

Standards

• SD Video Standards    525i59.94 NTSC, 625i50 PAL
• HD Video Standards    Various including 720p, 1080i, 1080p
• 2K DCI Video Standards    2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
• Ultra HD Video Standards    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
• 4K DCI Video Standards    4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
• SDI Compliance    SMPTE standards including 259M, 292M, 296M, 424M, 425M, 2081‑1, 2081‑10, 2084, 2108‑1
• SDI Metadata Support    HD RP188 and closed captioning CEA‑708. HDR Metadata supported on SDI
• Supported HDMI Formats    Various including 525i59.94 NTSC, 625i50 PAL, 720p, 1080i, 1080p, 2Kp DCI, 2160p, 4Kp DCI
• Audio Sampling    Television standard 24‑bit, 48 kHz sample rate
• Video Sampling    4:2:2 YUV
• Color Precision    10‑bit
• Color Space    REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied to SDI monitor out
• HDR Support    Hybrid Log‑Gamma, ST2084 variants
• Multi Rate Support    Auto detection of SD, HD, and 6G‑SDI
• Copy Protection    HDMI input is unable to capture from copy protected HDMI sources

Media

• Media Slots    2 x 2.5 inch disc slots, 2 x SD card slots, 1 x USB-C 3.0 expansion port
• Media Type    SATA-II or SATA-III 2.5 inch solid state media, UHS-I and UHS-II SD cards
• Media Format    Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems

Supported Codecs

• ProRes, DNxHD, DNxHR, H.264 formats for various resolutions and frame rates

Control

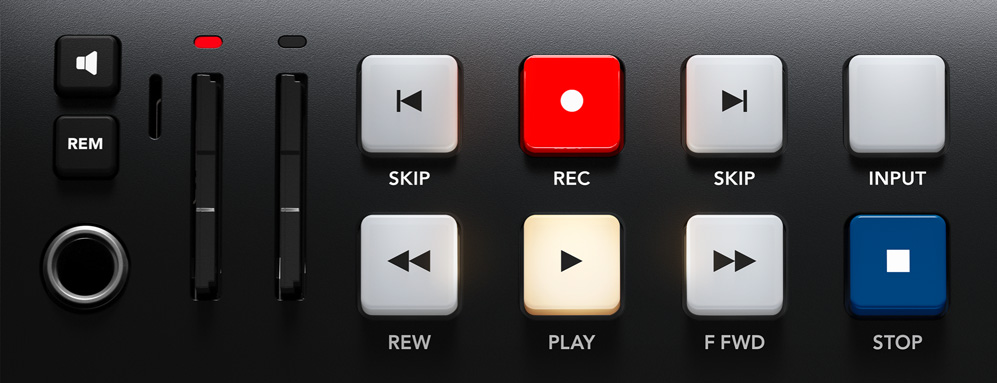

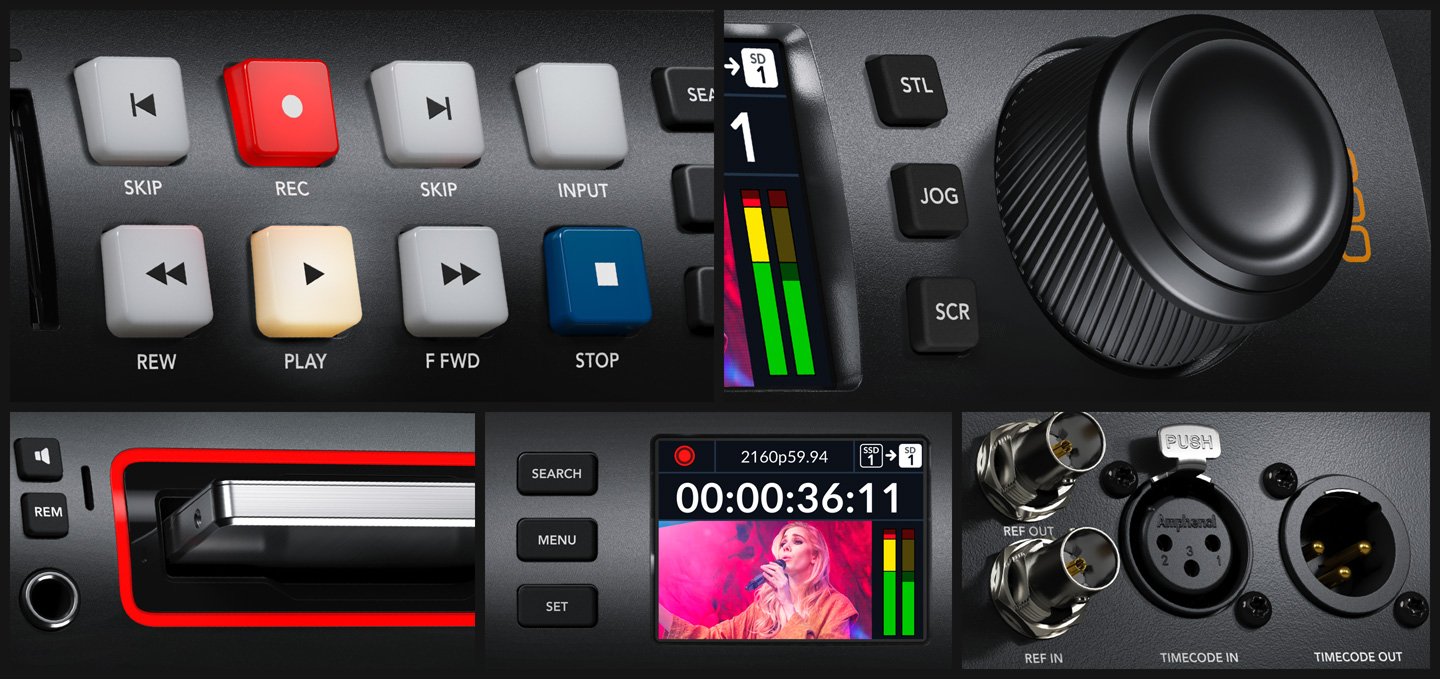

• Built-in Control Panel    16 buttons for transport and device control with search dial featuring electronic clutch and 2.2 inch color display
• External Control    RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP file upload

Software

• Software Included    Blackmagic OS, Blackmagic HyperDeck Setup, Internal Software Upgrade

Operating Systems

• Mac: 10.15 Catalina, 11.1 Big Sur or later. Windows: Windows 10, 64-bit

Displays

• Built-in 2.2 inch LCD for video, audio, and timecode monitoring and menu settings. LED bezel indicator lights around SSD media slots and LED indicator lights above the SD media slots

Power Requirements

• Power Supply    1 x Internal 100 - 240V AC 50/60Hz. 1 x 4 pin XLR 12V DC In for external power supply or battery use
• Power Usage    100 W max

Accessories

• Optional Accessories: HyperDeck Extreme Control

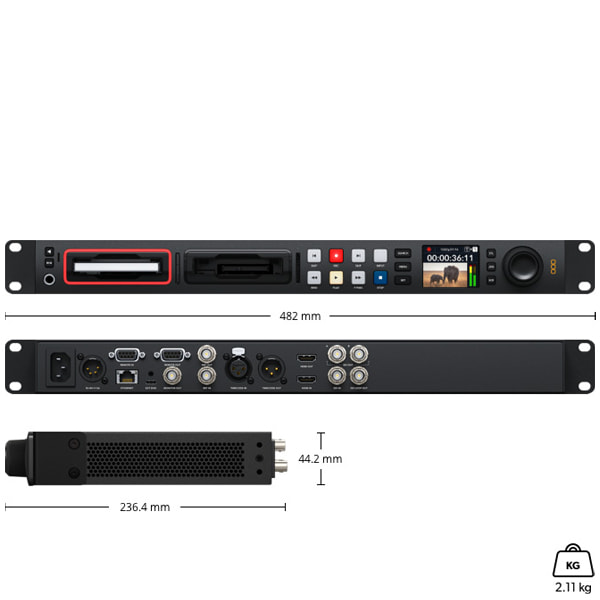

Physical Installation

• 1 rack unit height

Environmental Specifications

• Operating Temperature    0° to 40° C (32°to 104° F)
• Storage Temperature    -20° to 60° C (-4° to 140° F)
• Relative Humidity    0% to 90% non‑condensing

What's Included

• HyperDeck Studio HD Pro

Warranty

• 12 Month Limited Manufacturer's Warranty
