BLACKMAGIC DESIGN

Connections

• HDMI 2.0b Video Inputs    4
• HDMI Audio Inputs    8 Channels embedded in SD/HD/UHD/4K
• Computer Interface    PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots
• Supported Codecs    AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2

Software

• Software Included    Media Express, Disk Speed Test, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux
• Internal Software Upgrade    Firmware built into software driver. Loaded at system start or via updater software
• Physical Installation    PCI Express 8 lane generation 3, compatible with 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Please check the Support pages to see the full system requirements

Software Applications

• Wirecast, vMix, OBS, and other third-party applications including Cinegy Capture Pro, DevTek EasyMediaSuite, Glookast Capturer, Livestream Producer, Metus Ingest, Softron MovieRecorder, ToolsOnAir just
• , Burst Video WebClip2Go & [REC]Marker, Zoom. Support may vary; check with your software vendor

Video Standards

• SD Video Standards    525i59.94 NTSC, 625i50 PAL
• HD Video Standards    720p50, 720p59.94, 720p60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60; 1080i50, 1080i59.94, 1080i60
• Ultra HD Video Standards    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• 4K Video Standards    4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
• Digital Video Interface (DVI) Standards    640x480p60, 800x600p50, 800x600p60, 1440x900p50, 1440x900p60, 1440x1080p50, 1440x1080p60, 1600x1200p50, 1600x1200p60, 1920x1200p50, 1920x1200p60, 1920x1440p50, 1920x1440p60, 2560x1440p50, 2560x1440p60, 2560x1600p50, 2560x1600p60
• Audio Sampling    Television standard sample rate of 48 kHz and 24 bit
• HDMI Color Precision    8, 10, 12-bit RGB 4:4:4 in all modes up to 4Kp30 DCI and 8, 10-bit YUV 4:2:2 in all modes. 8-bit YUV 4:2:0 in Ultra HD and 4K DCI 50p and 60p. 8-bit RGB 4:4:4 in all DVI modes
• Color Space    REC 601, REC 709, REC 2020
• HDMI Video Sampling    4:4:4, 4:2:2 and 4:2:0
• HDMI Configuration    HDMI 2.0b supports Deep Color and HDR
• Multiple Rate Support    HDMI inputs are switchable between SD, HD, Ultra HD, 4K DCI and DVI modes
• Copy Protection    HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content

Operating Systems

•     Mac 12.0 Monterey, Mac 13.0 Ventura or later; Windows 10, 64-bit; Windows 11; Linux

Power Requirements

• Power Consumption    23 W

Environmental Specifications

• Operating Temperature    5° to 40° C (41° to 104° F)
• Storage Temperature    -20° to 45° C (-4° to 113° F)
• Relative Humidity    0% to 90% non-condensing

What's Included

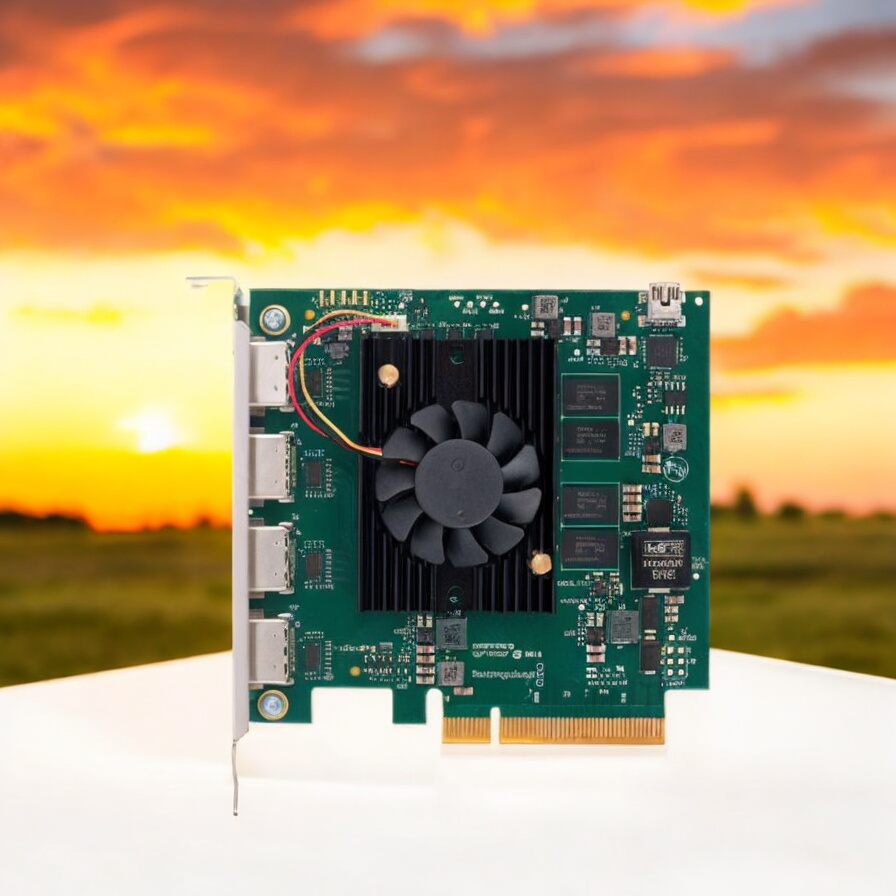

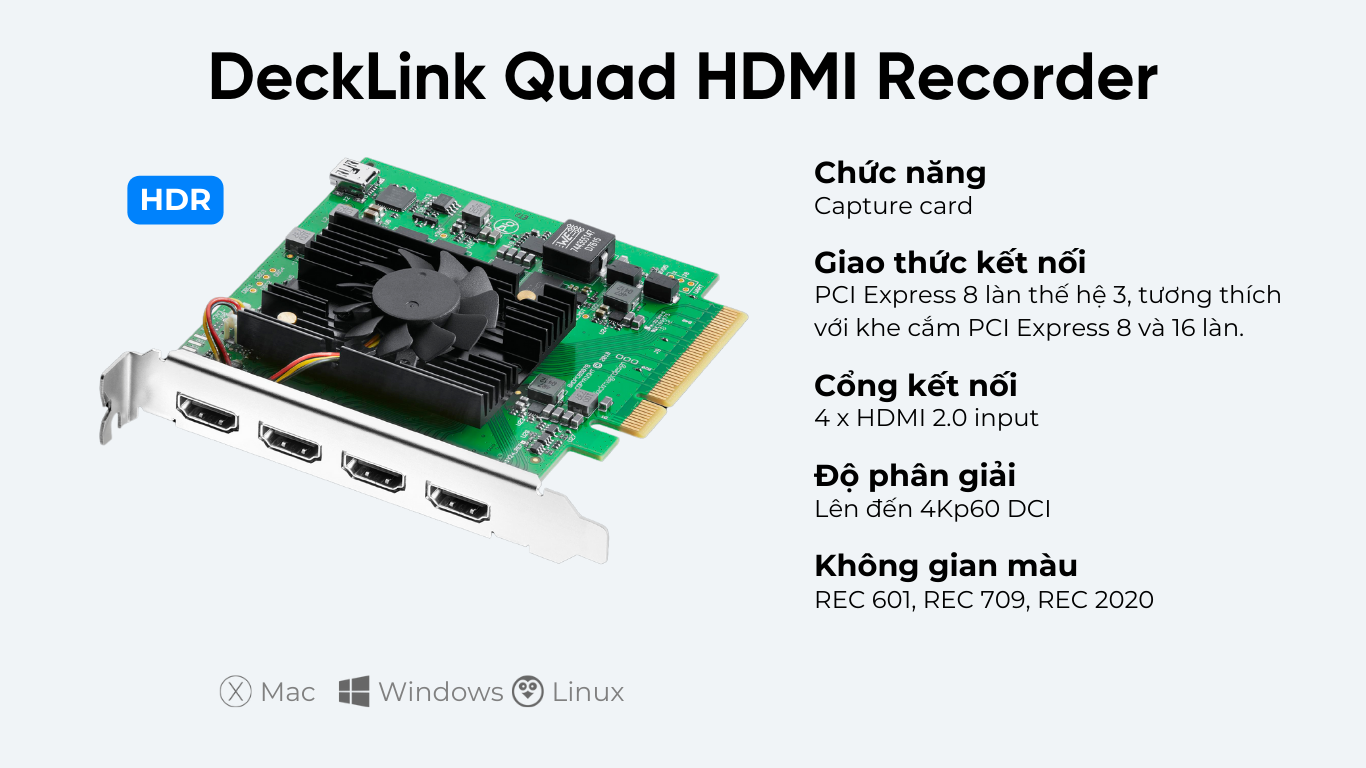

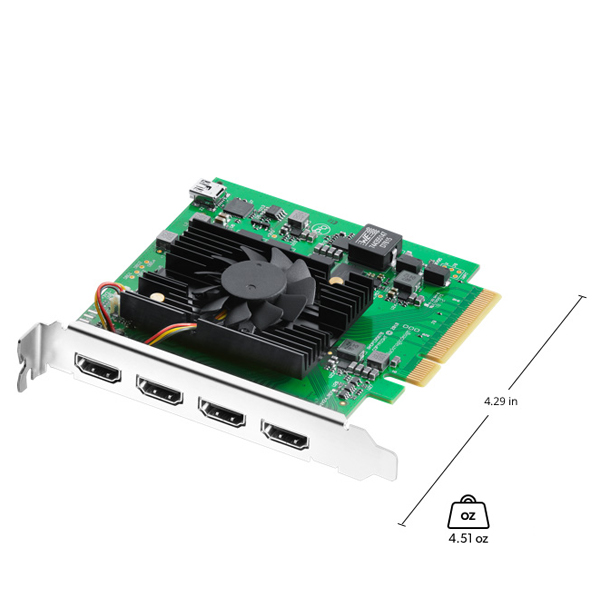

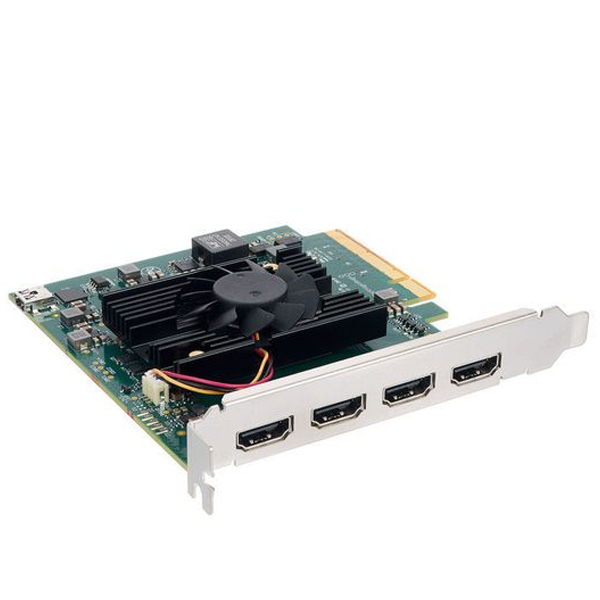

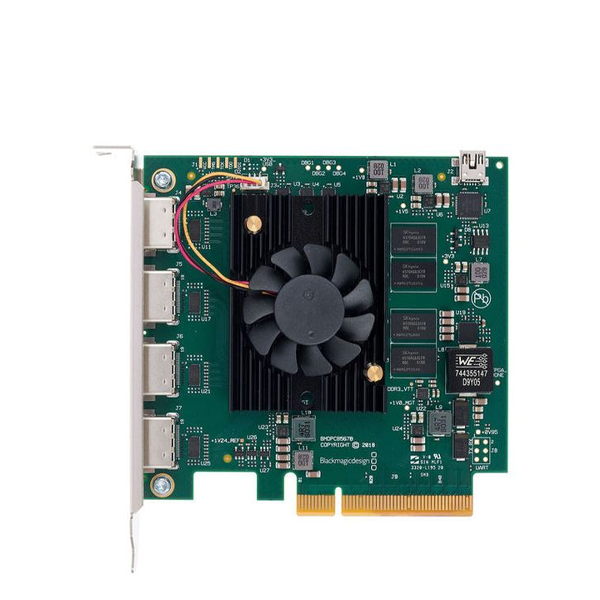

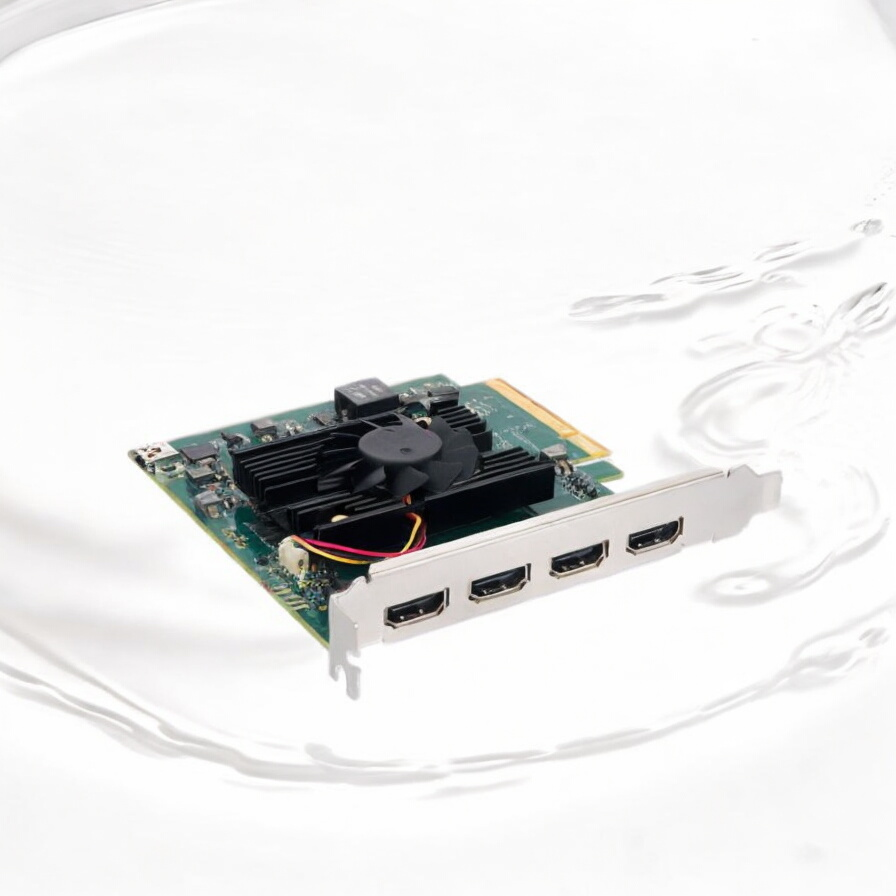

• DeckLink Quad HDMI Recorder

Warranty

• 12 Months Limited Warranty
