BLACKMAGIC DESIGN

Connections

• SDI Video Outputs    1x 10-bit SD/HD/Ultra HD switchable
• SDI Audio Outputs    16 channels embedded in SD, HD, and Ultra HD
• HDMI Video Outputs    1 x HDMI 2.0a
• HDMI Audio Outputs    8 channels embedded in SD, HD, and Ultra HD
• Other Connections    PCI Express 4 lanes generation 2, compatible with PCI Express 4, 8, and 16 lane slots

Supported Codecs

• AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2

Software

• Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility, and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility, and Blackmagic driver on Linux.
• Internal Software Upgrade    Firmware built into software driver. Loaded at system start or via updater software.
• Physical Installation    PCI Express 1 lane generation 2, compatible with PCI Express 1, 4, 8, and 16 lane slots on Mac OS, Windows, and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Check the Support pages for full system requirements.

Software Applications

• Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D, Burst Video WebClip2Go & [REC]Marker, Zoom. These are third-party applications and support may vary, check with your software vendor.

Video Standards

• SD Video Standards    525i59.94 NTSC, 625i50 PAL
• HD Video Standards    720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
• 2K Video Standards    2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI F25PsF
• Ultra HD Video Standards    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
• 4K DCI Video Standards    4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
• SDI Compliance    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656, ITU-R BT.601
• SDI Metadata Support    RP 188/SMPTE 12M-2 and closed captions
• Audio Sampling    Television standard sample rate of 48 kHz and 24-bit
• SDI Video Sampling    4:4:4 & 4:2:2
• SDI Color Precision    8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p60, and 8, 10-bit YUV 4:2:2 in all modes
• Color Space    REC 601, REC 709, REC 2020
• SDI HDR Support    HDR static metadata packing and HLG and PQ transfer characteristics
• HDMI Video Sampling    4:4:4, 4:2:2 & 4:2:0
• HDMI Configuration    HDMI 2.0a supports Deep Color and HDR
• HDMI Color Precision    Up to 12-bit (Deep Color)
• HDMI HDR Support    HDR static metadata packing and HLG and PQ transfer characteristics
• Multiple Rate Support    HDMI and SDI video connections switchable between SD/HD/2K and 4K
• Copy Protection    HDMI input cannot capture from copy-protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
• Processing    Colorspace Conversion: Hardware-based real time. HD Down Conversion: Software-based during video playback. HD Up Conversion: Built-in software scales from SD to HD when playing video. Choice of 4:3 pillarbox or 16:9 anamorphic.

Power Requirements

• Power Consumption: 8 Watts

What's Included

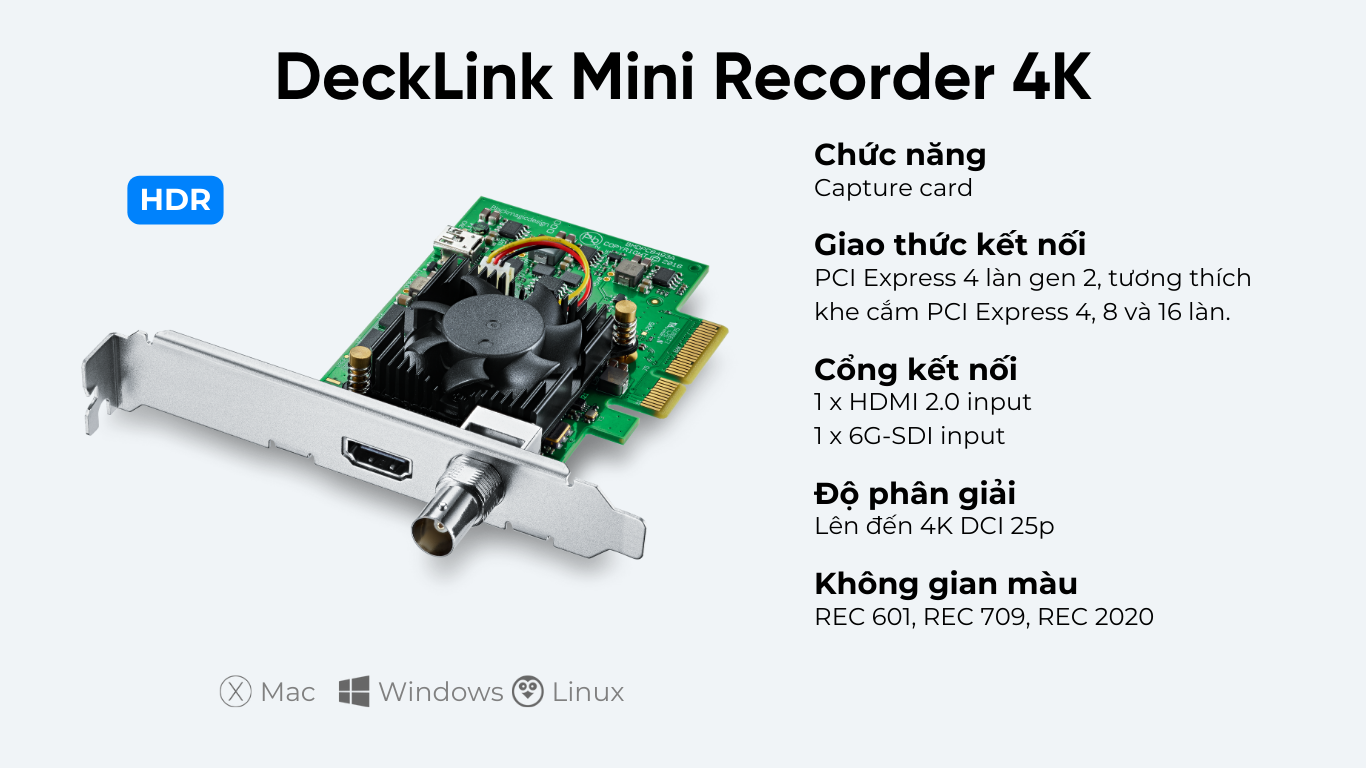

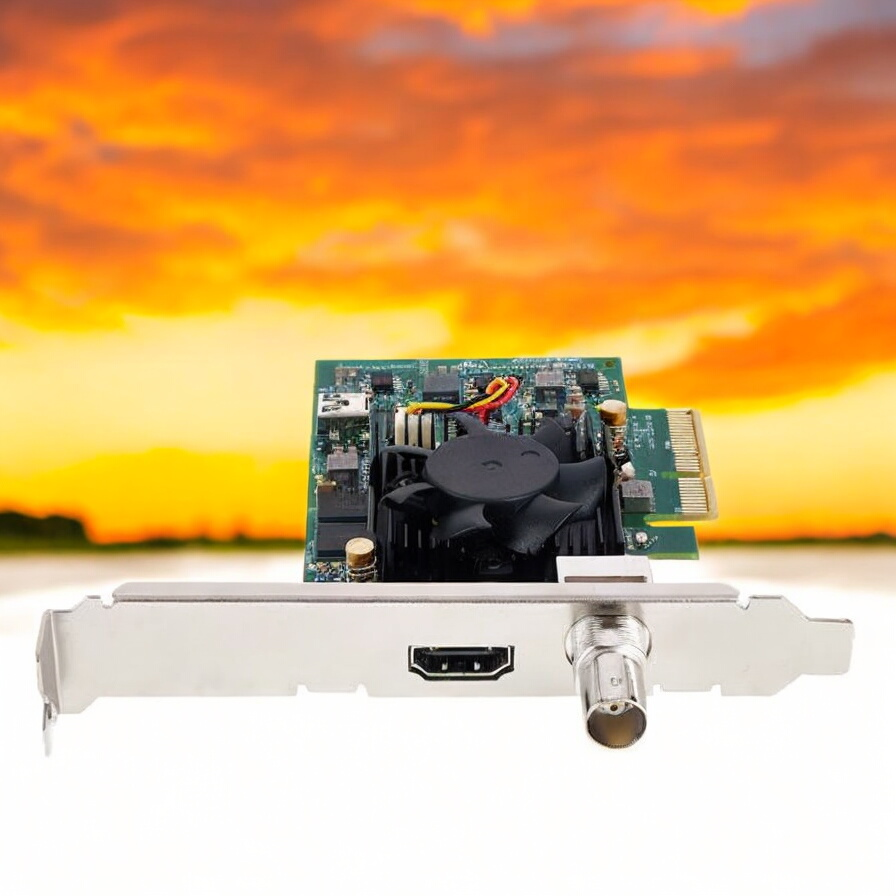

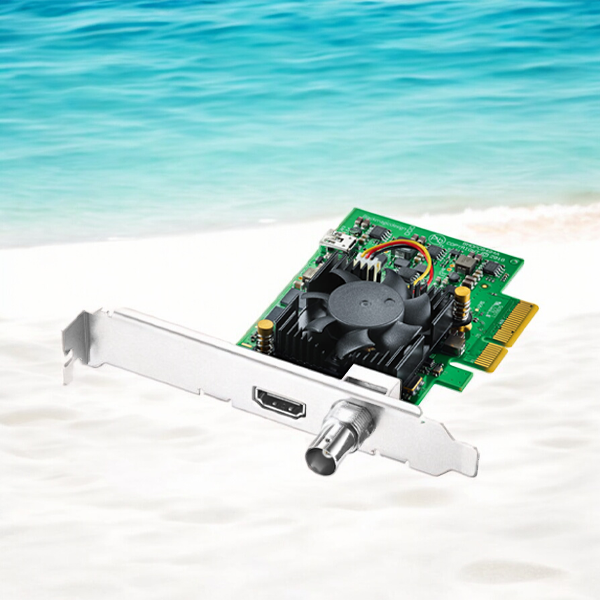

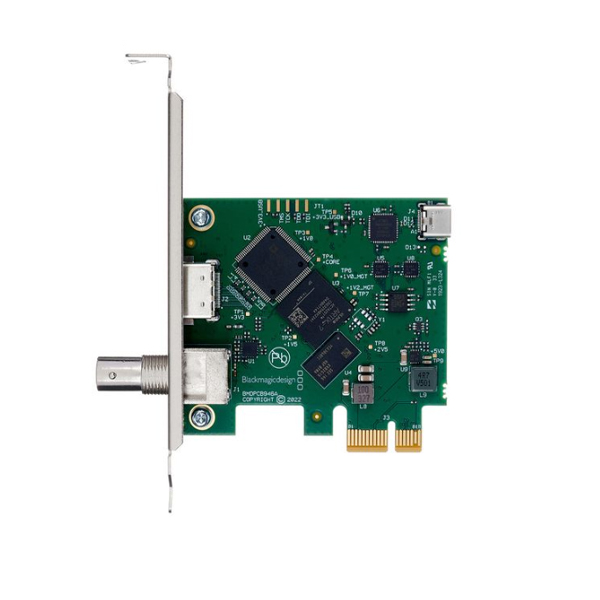

• DeckLink Mini 4K Recorder, Sturdy slot bracket
