BLACKMAGIC DESIGN

Connector

• SDI Video Outputs    1x 10-bit SD/HD switchable
• SDI Rates    270Mb, 1.5G, 3G
• SDI Audio Outputs    16 channels embedded in SD/HD
• HDMI Video Outputs    1 x HDMI 2.0 type A
• HDMI Audio Outputs    8 channels embedded in SD/HD
• PCI Express    1-lane Gen 2 connector, compatible with 1, 4, 8, and 16-lane PCI Express slots
• Supported Codecs    AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4
• Software    Includes Media Express software, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
• Internal Software Upgrade    Built-in firmware control software. Loaded at system startup or via update software
• Physical Installation    1-lane PCI Express Gen 2, compatible with 1, 4, 8, and 16-lane PCI Express slots on Mac OS, Windows, and Linux. Mac OS requires a Mac Pro computer with a PCI Express slot. Please check the Support pages for complete system requirements.
• Software Applications    The Foundry Nuke, Sony Catalyst Production Suite, Tools On Air Just: Play & Live, Magix Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Grass Valley Edius, Softron MReplay, Telestream Wirecast, Livestream Studio, Resolume Arena, Vegas Creative Software Vegas Pro, VidblasterX Studio and Broadcast, Unimedia Technologies UniplayOne and Uniplay-CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, DevTek Easy Media Suite, Boinx Software MimoLive, StudioCoast vMix, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard and CoralCG, Open Broadcaster Software Studio, Nautilus Studio Nemo3D, Burst Video Webclip2Go, Derivative TouchDesigner, Assimilate Scratch and Live Assist, NewBlue Title Live and Titler Pro, SGO Mistika. These are third-party applications and support may vary, check with your software vendor.

SDI Video Standard

• SD Video Standards    525i59.94 NTSC, 625i50 PAL
• HD Video Standards    720p50, 720p59.94, 720p60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60; 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30; 1080i50, 1080i59.94, 1080i60
• 2K Video Standards    2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI; 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
• SDI Compliance    SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M A/B and SMPTE ST2108-1
• SDI Metadata Support    RP 188/SMPTE 12M-2 and closed captioning
• SDI Audio Sampling    The standard sampling rate for television is 48 kHz and 24-bit
• SDI Video Sampling    4:2:2, 4:4:4
• SDI Color Precision    8, 10, 12-bit RGB 4:4:4 up to 1080p30 and 8, 10-bit YUV 4:2:2 in all standards
• SDI Color Space    REC 601, REC 709 and REC 2020
• SDI HDR Support    HDR metadata packaging, HLG and PQ transfer properties
• Multiple Rate Support    SDI video connection can switch between SD and HD

HDMI Video Standard

• SD Video Standards    525i59.94 NTSC, 625i50 PAL
• HD Video Standards    720p50, 720p59.94, 720p60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60; 1080i50, 1080i59.94, 1080i60
• HDMI Audio Sampling    The standard sampling rate for television is 48 kHz and 24 bits
• HDMI Video Sampling    4:2:2 and 4:4:4
• HDMI Color Precision    8, 10, 12-bit RGB 4:4:4 up to 1080p30, 8-bit RGB 4:4:4 and 12-bit YUV 4:2:2 in all standards
• HDMI Configuration    HDMI 2.0 supports Deep Color
• HDMI Color Space    REC 601, REC 709 and REC 2020
• HDMI HDR Support    Encapsulates HDR metadata, HLG and PQ transfer properties
• Multiple Rate Support    HDMI video connection can switch between SD and HD
• Hardware Frame Buffer    v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB)
• Processing    Real-time effects inside DaVinci Resolve, Final Cut Pro. Effects inside Adobe Premiere Pro CC Mercury Playback Engine. Effects inside Avid Media Composer.
• Color Space Conversion    Real-time hardware-based
• Physical Installation    1 lane PCI Express Gen 2, compatible with 1, 4, 8, and 16 lane PCI Express slots on Mac OS, Windows, and Linux. Mac OS requires a Mac Pro computer with a PCI Express slot. Please check the Support pages for complete system requirements.

Power Requirements

• Power Consumption    3 Watts

What's Included

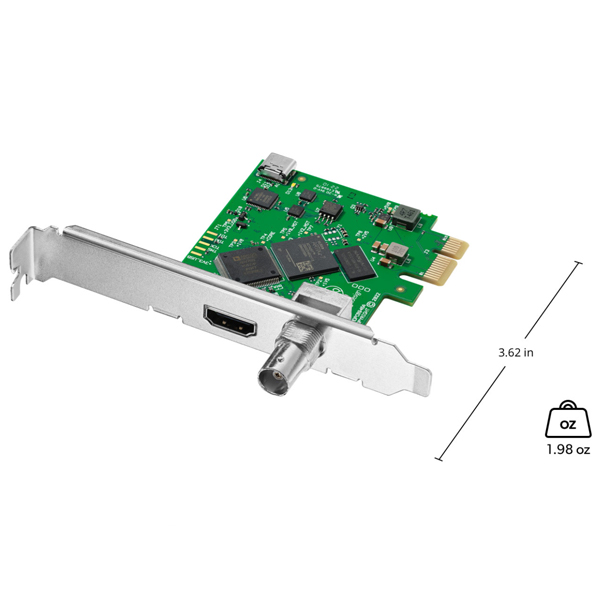

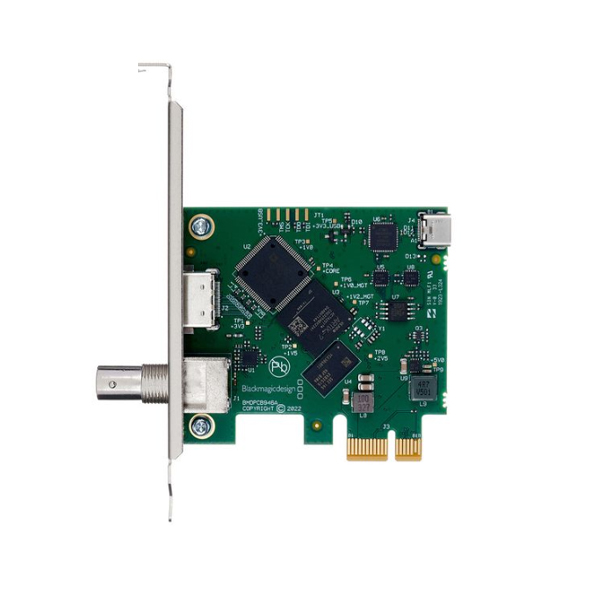

• DeckLink Mini Monitor HD, Low profile mounting bracket for slot

Warranty

• 12 Month Limited Manufacturer's Warranty
