BLACKMAGIC DESIGN

Connections

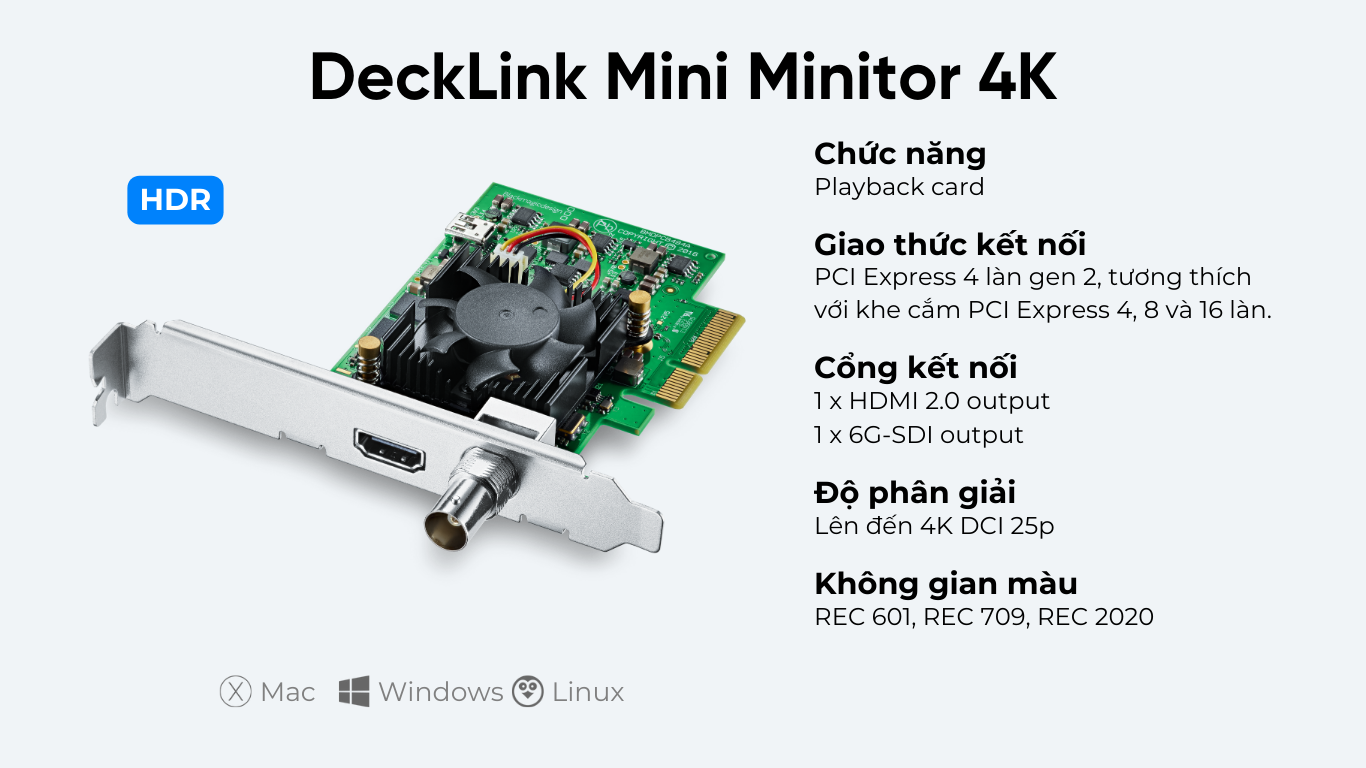

• SDI Video Outputs    1 x 10-bit SD/HD/Ultra HD switchable
• SDI Audio Outputs    16 channels embedded in SD, HD, Ultra HD
• HDMI Video Outputs    1 x HDMI 2.0a connector
• HDMI Audio Outputs    8 Channels embedded in SD, HD, Ultra HD
• Computer Interface    PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane slots

Supported Codecs

• AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2

Software

• Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility, Blackmagic driver (Mac OS, Windows, Linux)
• Internal Software Upgrade    Firmware built into software driver, loaded at system start or via updater

Software Applications

• DaVinci Resolve, Fusion, Final Cut Pro, Adobe Premiere Pro CC, Avid Media Composer, Adobe After Effects CC, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo, Adobe Photoshop CC, and others (see detailed list)

Video Standards

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL HD Video: 720p, 1080p, 1080PsF, 1080i Ultra HD Video: 2160p 4K DCI Video: 4K DCI 23.98p, 24p, 25p 2K Video (SDI Only): 2K DCI
• SDI Compliance    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656, ITU-R BT.601
• SDI Metadata Support    RP 188/SMPTE 12M-2 and closed captioning
• Audio Sampling    Television standard sample rate of 48 kHz and 24-bit
• SDI Color Precision    8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p60, 8, 10-bit YUV 4:2:2
• SDI Video Sampling    4:4:4 & 4:2:2
• Color Space    REC 601, REC 709, REC 2020
• SDI HDR Support    HDR static metadata packing, HLG and PQ transfer characteristics
• HDMI Video Sampling    4:4:4, 4:2:2 & 4:2:0
• HDMI Configuration    HDMI 2.0a supports Deep Color and HDR, auto-configures to connected display
• HDMI Resolution    Pixel for pixel HD resolution output
• HDMI Color Precision    Up to 12-bit (Deep Color)
• HDMI HDR Support    HDR static metadata packing, HLG and PQ transfer characteristics
• Multiple Rate Support    HDMI and SDI switchable between SD/HD/2K and 4K

Processing

• HD to SD Down Conversion, HD Cross Conversion, Real Time Effects

Operating Systems:

• Mac 12.0 Monterey, Windows 10/11, Linux
• Power Consumption: 10 W

Environmental Specifications

• Operating Temperature: 5° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing

What's Included

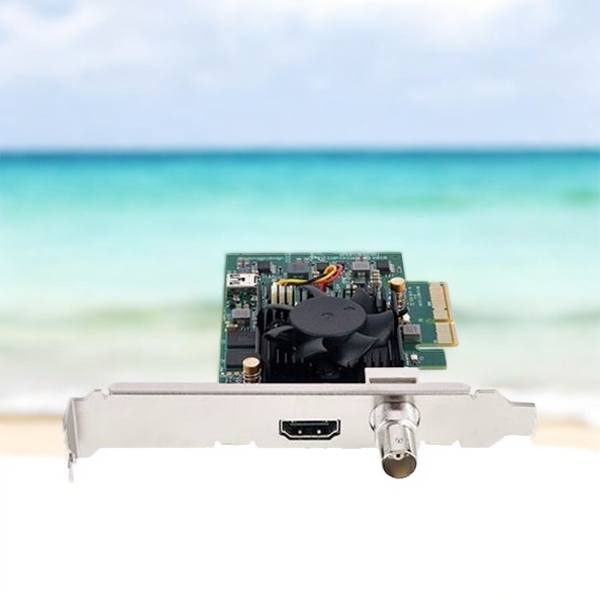

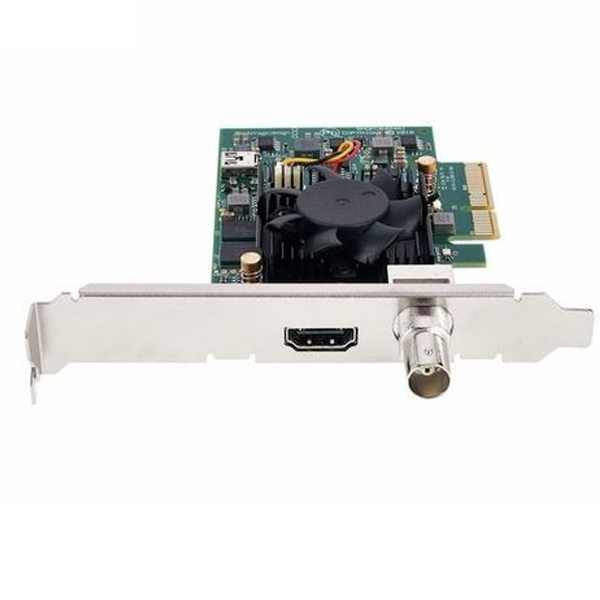

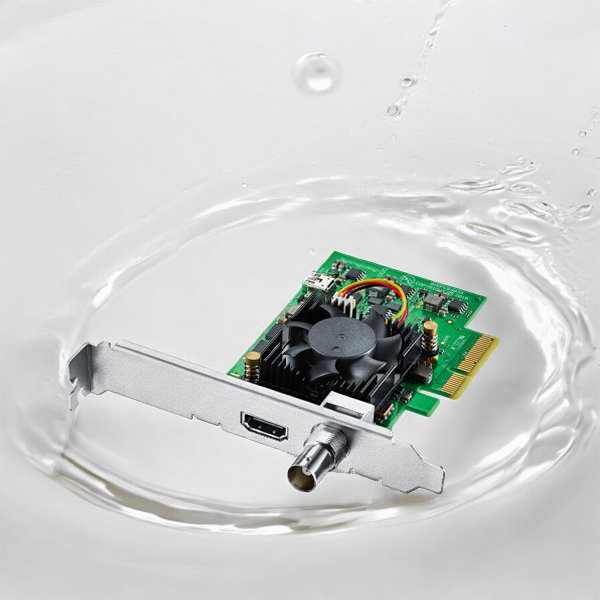

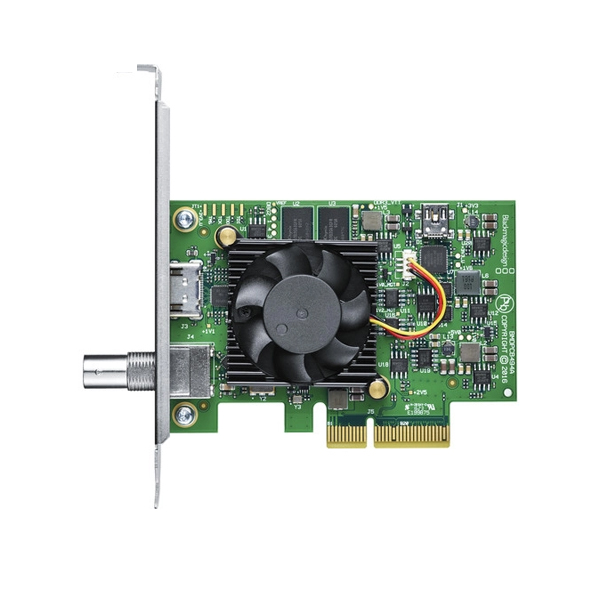

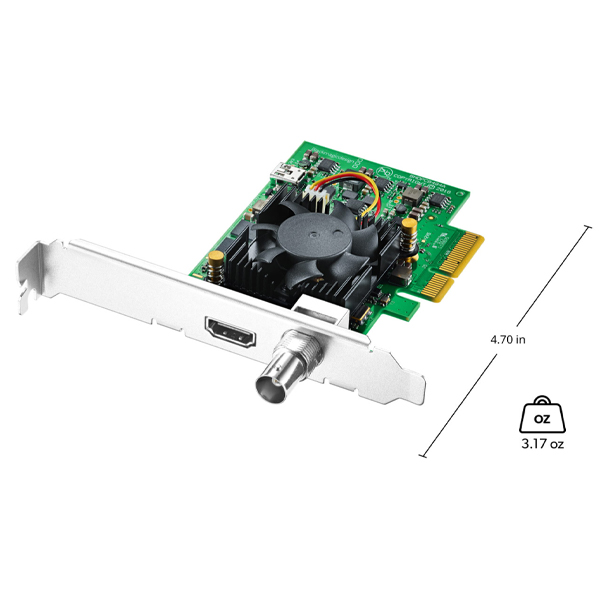

• DeckLink Mini Monitor 4K, low profile slot bracket

Warranty

• 12 Month Limited Manufacturer's Warranty
