BLACKMAGIC DESIGN

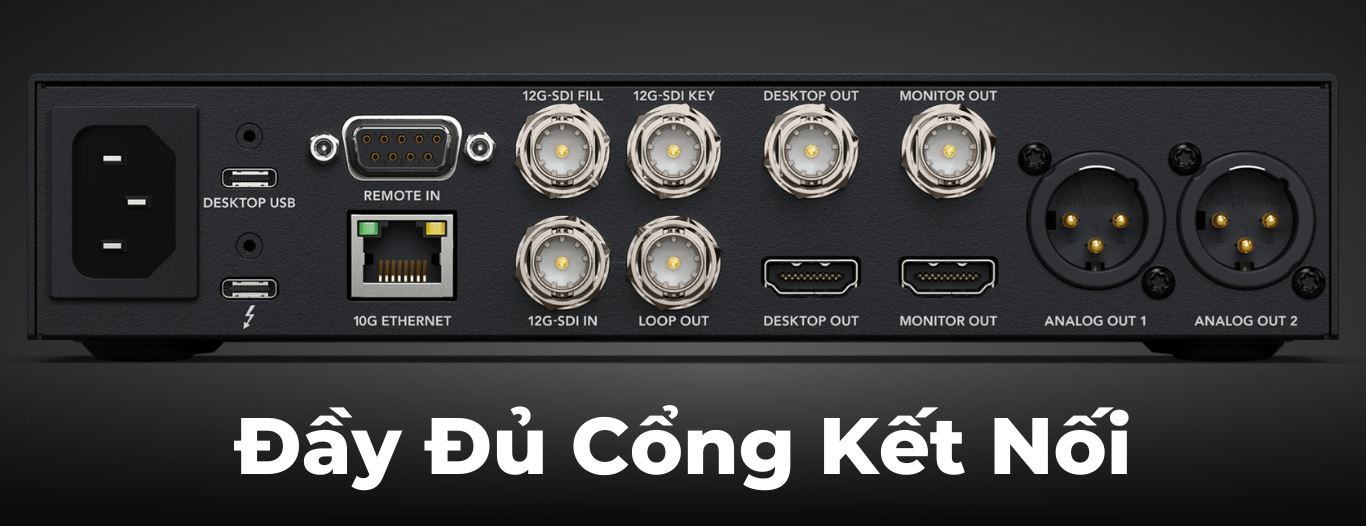

Connections

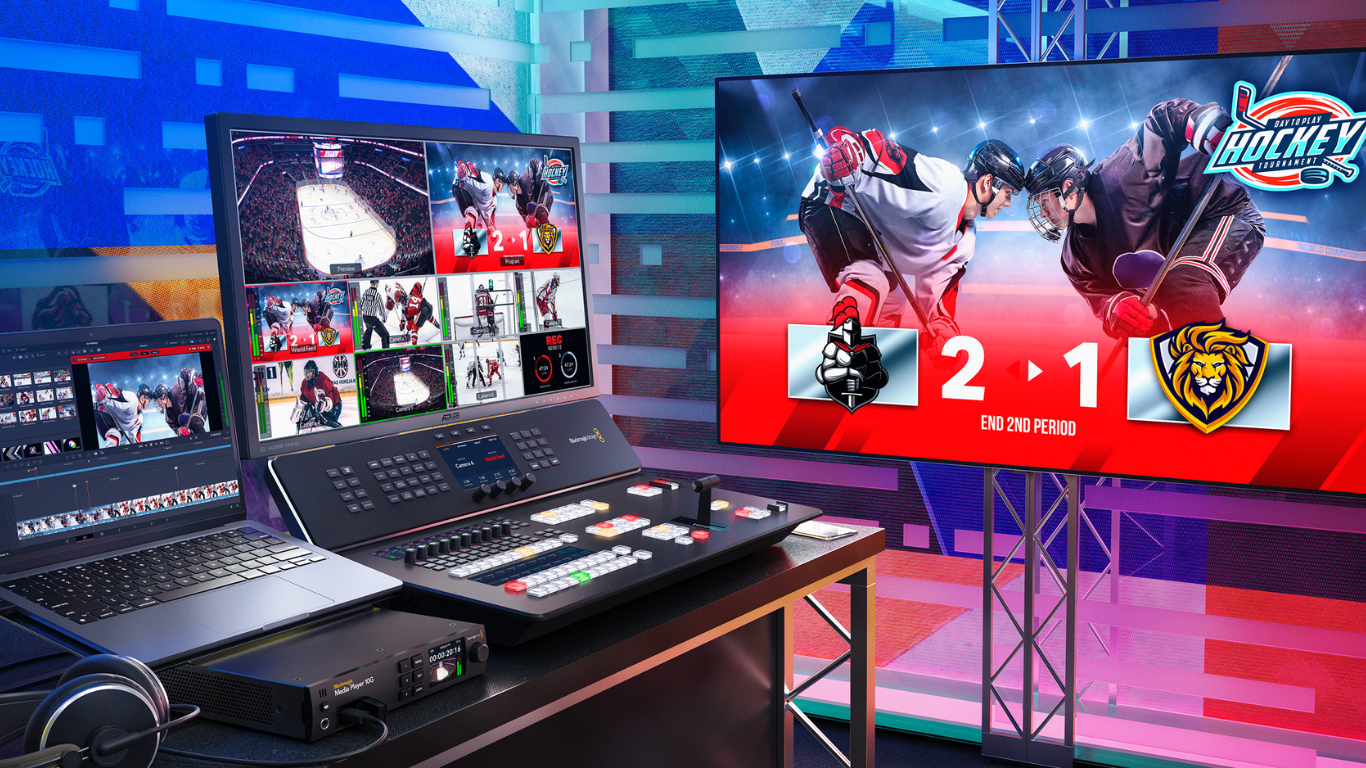

• SDI Video Inputs    1 x 12Gb/s SD/HD/2K/4K

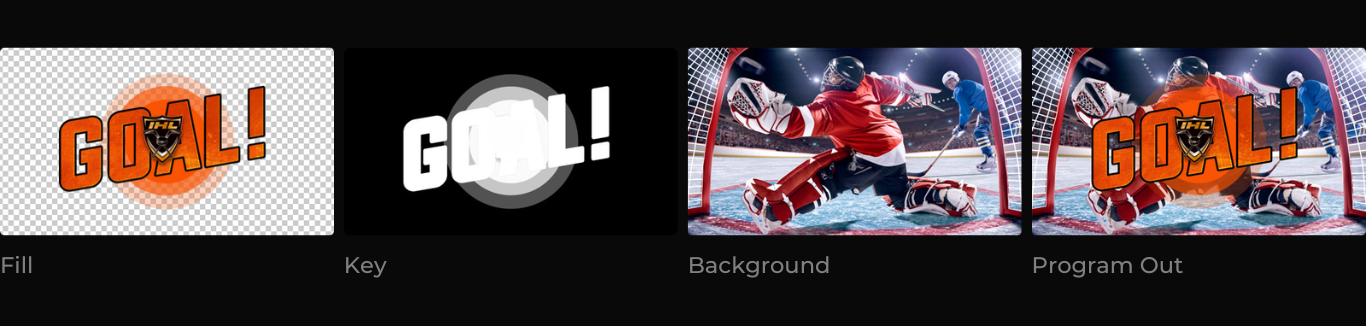

• SDI Fill Outputs    1 x 12Gb/s SD/HD/2K/4K
• SDI Key Outputs    1 x 12Gb/s SD/HD/2K/4K
• SDI Loop Outputs    1 x 12Gb/s SD/HD/2K/4K
• SDI Extended Desktop Outputs    1 x 12Gb/s SD/HD/2K/4K
• SDI Monitor Outputs    1 x 12Gb/s SD/HD/2K/4K
• SDI Rates    270Mb, 1.5G, 3G, 6G, 12G
• HDMI Extended Desktop Outputs    1 x HDMI
• HDMI Monitor Outputs    1 x HDMI
• Analog Audio Outputs    2 channels of professional balanced analog audio with 3-pin XLR connectors.
• 1 x 6.35 mm headphone jack.
• SDI Audio Inputs    16 Channels embedded in SD/HD/2K/UHD/4K.
• SDI Audio Outputs    16 Channels embedded in SD/HD/2K/UHD/4K.
• HDMI Audio Outputs    8 Channels embedded in SD/HD/UHD/4K.

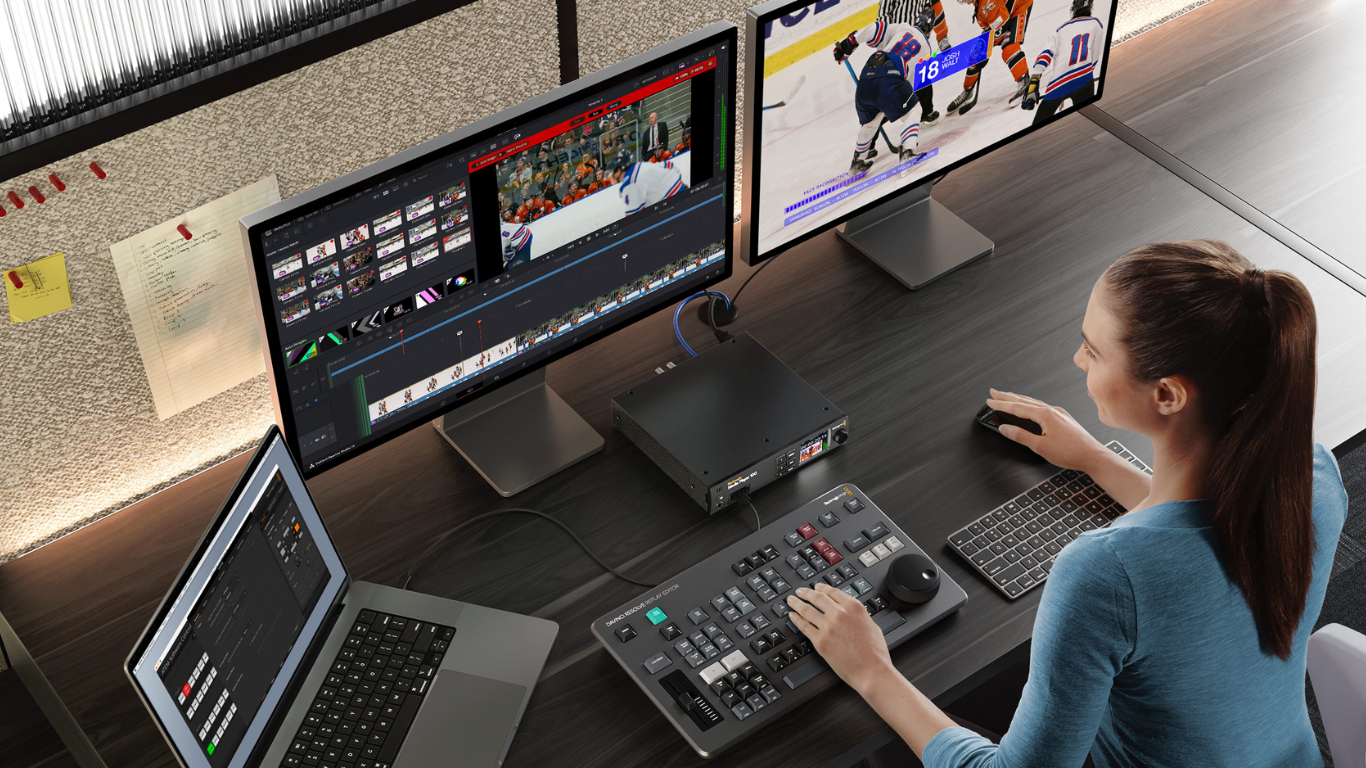

• Device Control    1 x Sony™ compatible RS-422 deck control input port.

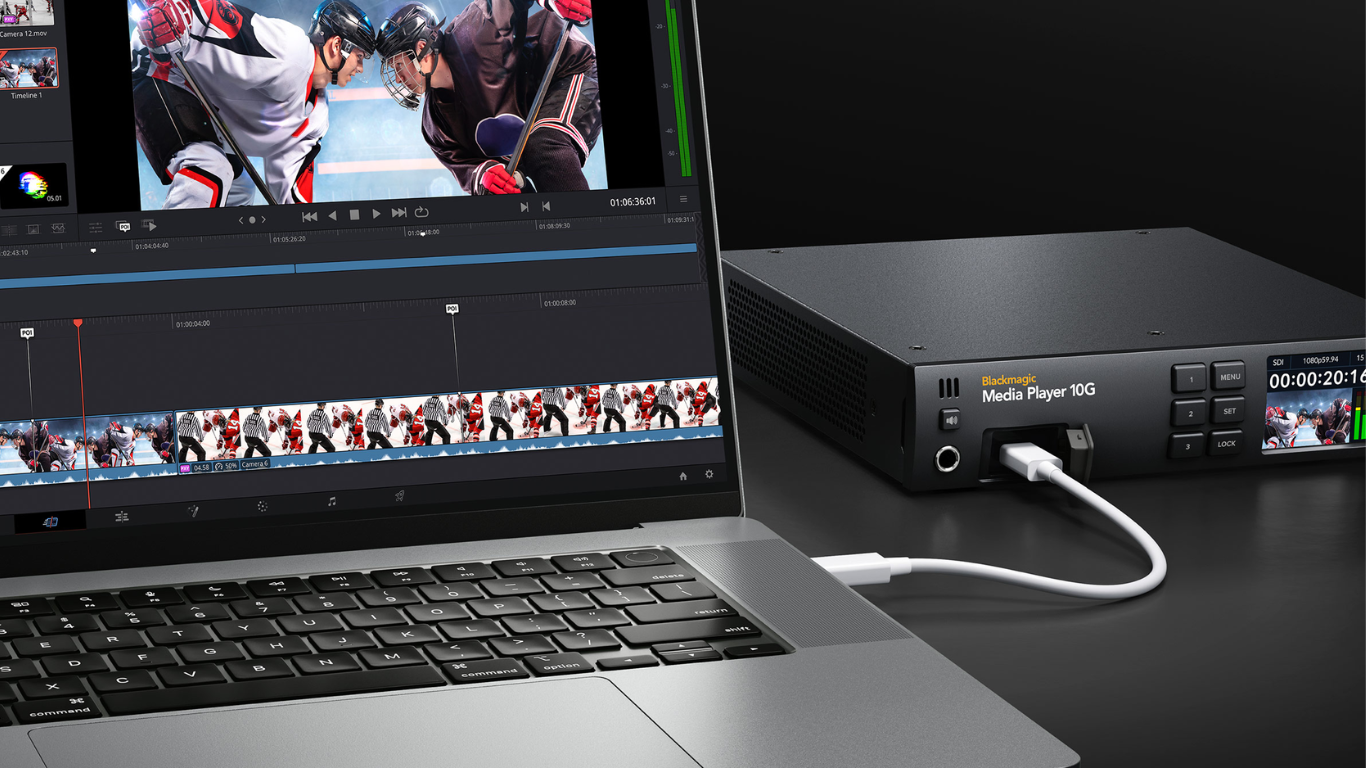

• USB    1 x USB‑C 3.1 Gen 1 (up to 5 Gb/s).

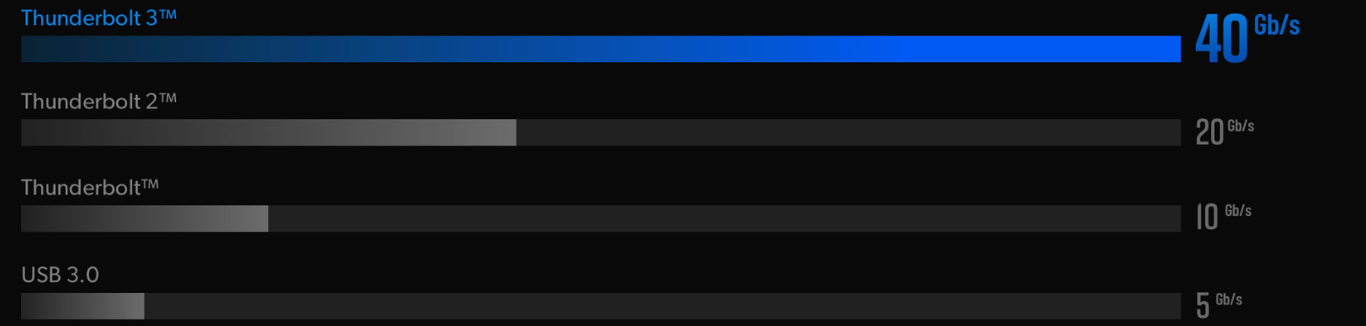

• Computer Interface    2 x Thunderbolt™ 3 (Mac OS, Windows and Linux)
• 1 x USB‑C for keyboard, mouse and other USB devices
• Ethernet    1 x 10Gb/s RJ‑45 connector supporting 1000/10G BASE‑T.

Supported Codecs

• Video Codecs    AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.

Software

• Software Included    Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
• Internal Software Upgrade    Firmware built into software driver. Software driver loads upgrades at system start or via updater software.

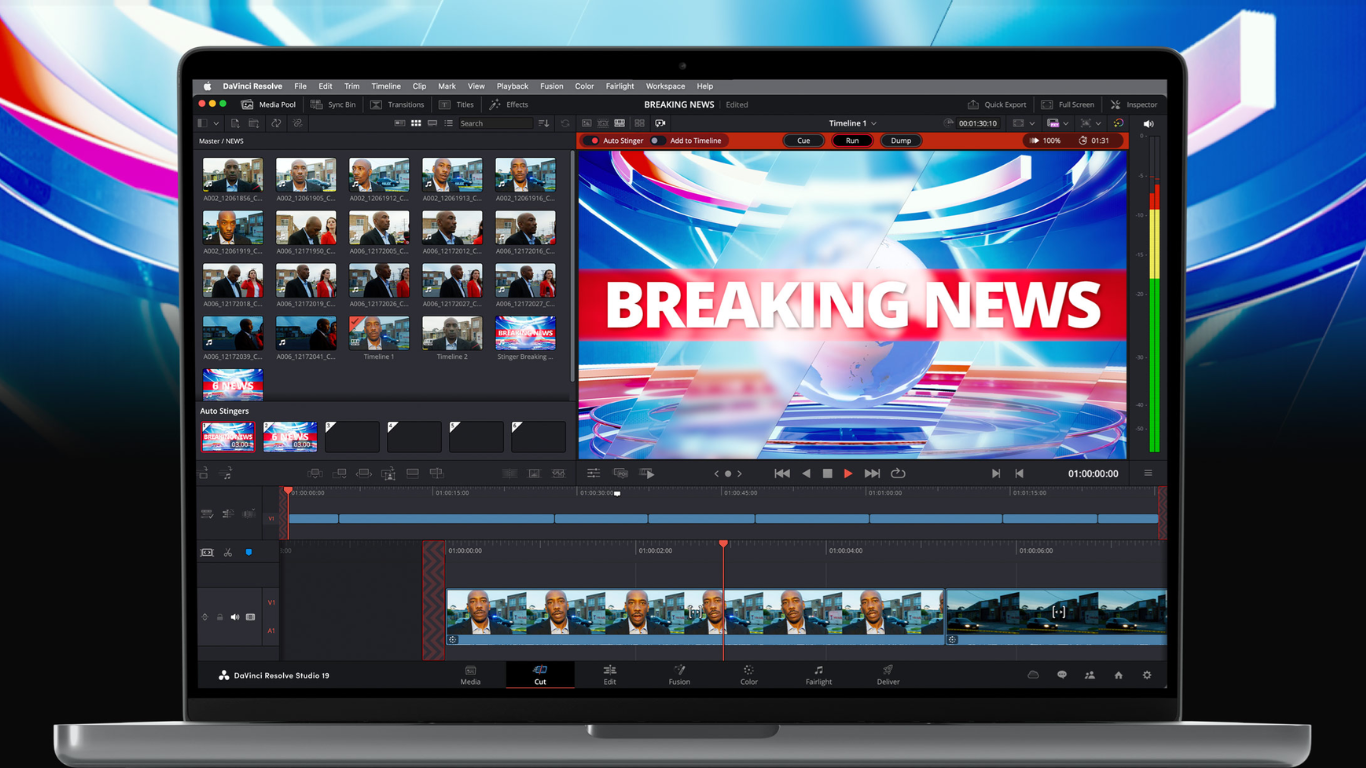

• Software Applications    DaVinci Resolve, Fusion

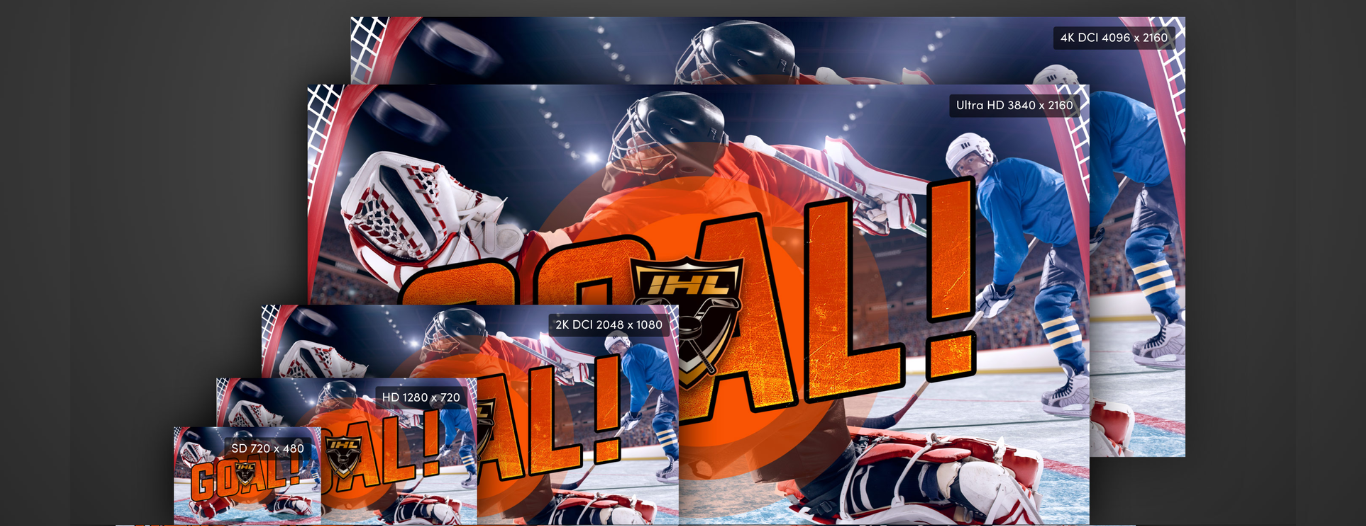

SDI Video Standards

• SD Video Standards    525i59.94 NTSC, 625i50 PAL
• HD Video Standards    720p50, 720p59.94, 720p60
• 1080i50, 1080i59.94, 1080i60
• 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• 2K Video Standards    2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
• 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
• Ultra HD Video Standards    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• 4K Video Standards    4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
• SDI Compliance    SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE ST2108-1.
• SDI Metadata Support    RP 188/SMPTE 12M-2 and closed captioning.
• Multiple Rate Support    SDI video connections are switchable between SD/HD/2K/UHD and 4K.
• SDI Audio Sampling    Television standard sample rate of 48 kHz and 24-bit.
• SDI Video Sampling    4:2:2, 4:4:4

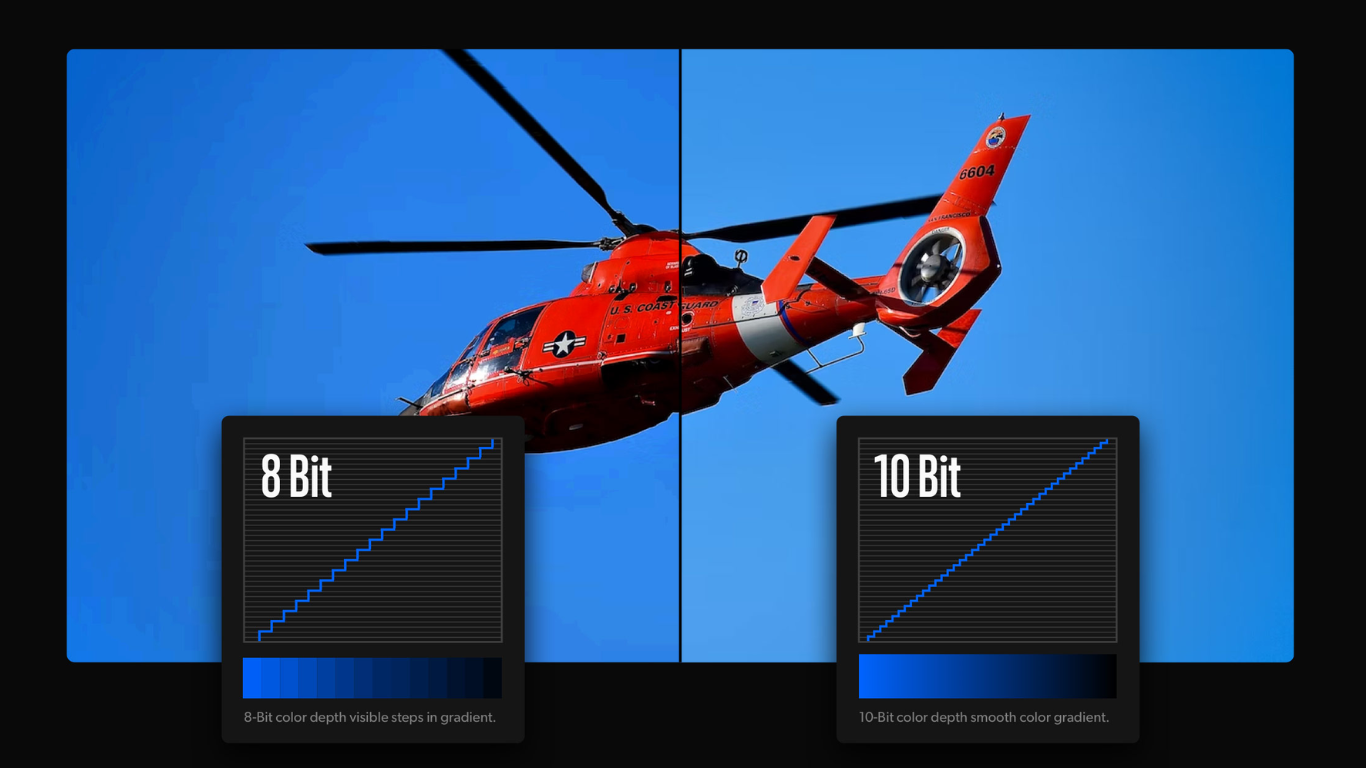

• SDI Color Precision    8, 10, 12-bit RGB 4:4:4 in modes up to 4Kp30 and 8, 10-bit YUV 4:2:2 in all modes.
• SDI Color Space    REC 601, REC 709 and REC 2020
• HDR Support    HDR static metadata packing, HLG and PQ transfer characteristics.

HDMI Video Standards

• SD Video Standards    525i59.94 NTSC, 625i50 PAL
• HD Video Standards    720p50, 720p59.94, 720p60
• 1080i50, 1080i59.94, 1080i60
• 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Ultra HD Video Standards    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• 4K Video Standards    4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
• HDMI Audio Sampling    Television standard sample rate of 48 kHz and 24-bit.
• HDMI Video Sampling    4:4:4, 4:2:2 and 4:2:0
• HDMI Color Precision    8, 10 and 12-bit
• HDMI Color Space    REC 601, REC 709 and REC 2020
• HDR Support    HDR static metadata packing, HLG and PQ transfer characteristics.
• HDR Configuration    HDMI 2.0b supports Deep Color and HDR. Automatically configures to connected display.
• Multiple Rate Support    HDMI video connections are switchable between SD/HD/UHD and 4K.
• Hardware Frame Buffer    v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), Ay10 (10 bit YUVA), R12B, R12L (12 bit RGB).

Control

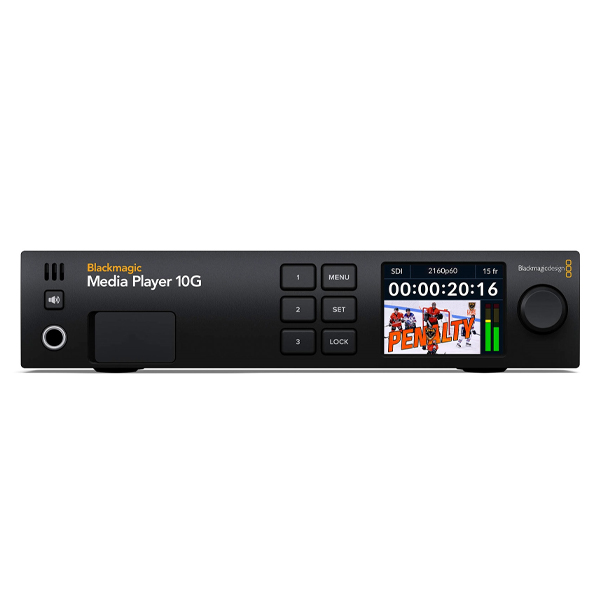

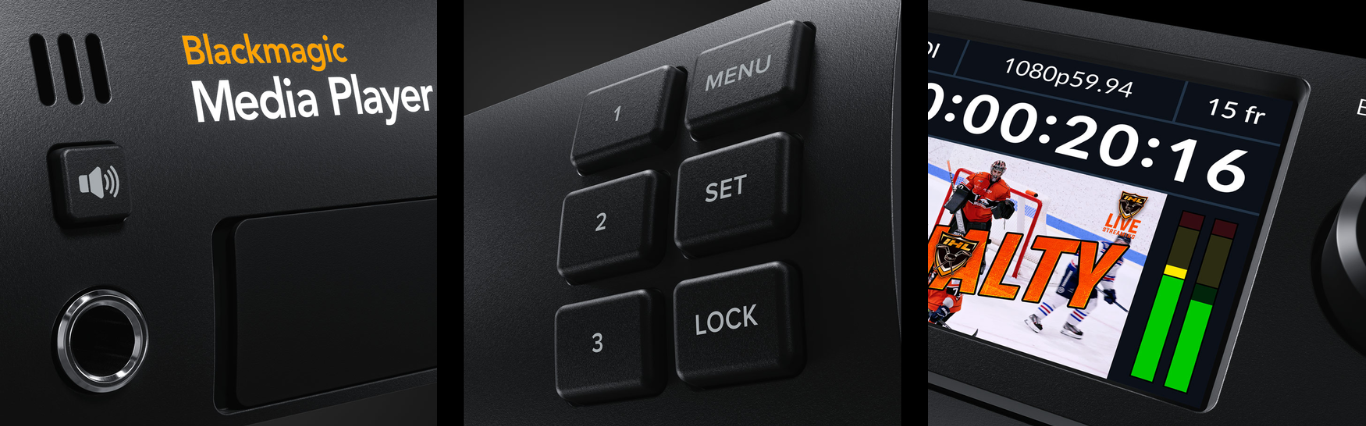

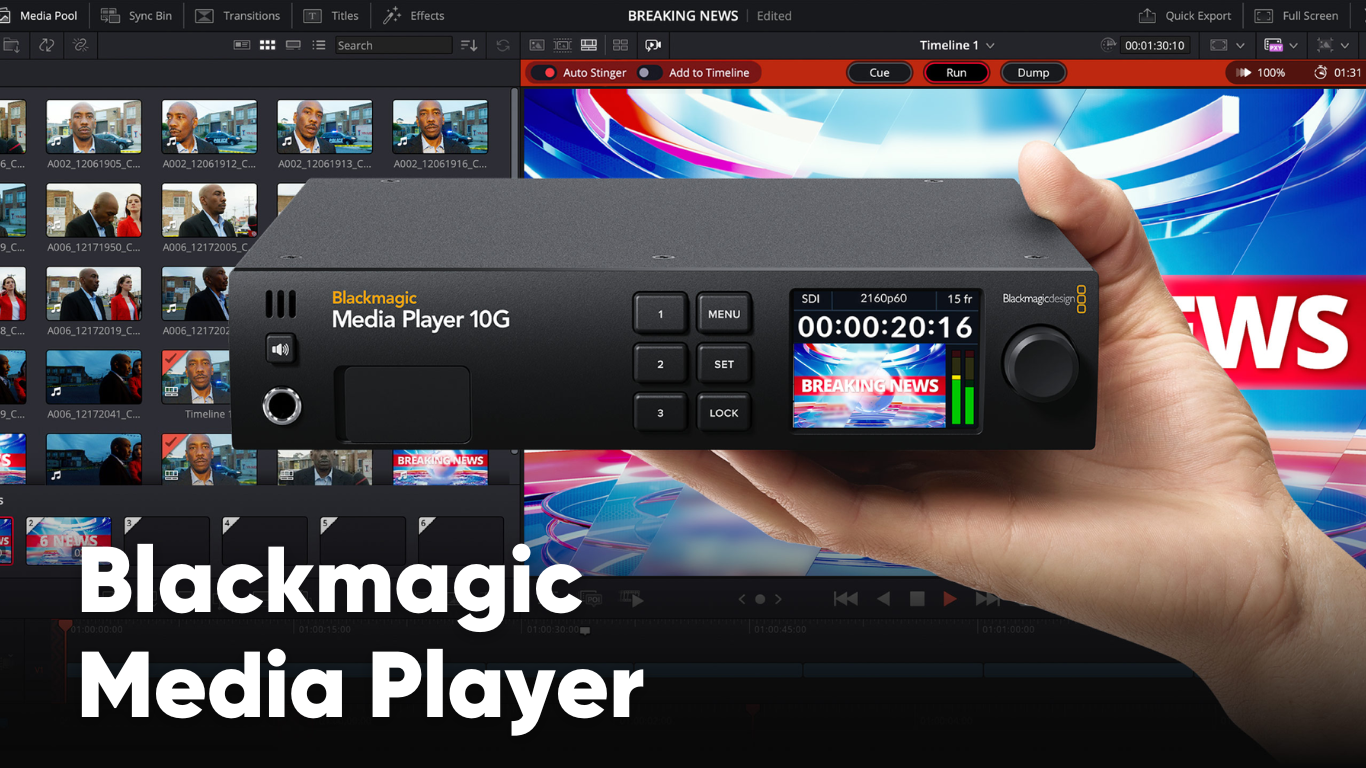

• Built-in Control Panel    6 buttons, spin knob and 2.2 inch color display for menu and settings. Front speaker on/off button.
• External Control    RS-422 deck control input for remote control of software. Also supports Advanced Media Protocol.

Physical Installation

• Half rack unit width, 1 rack unit height.
• Operating Systems
• Mac 13.0 Ventura, Mac 14.0 Sonoma or later.
• Windows 10, 64-bit. Windows 11.

Power Requirements

• Power Supply    1 x Internal 100 - 240V AC 50/60Hz with IEC C14 socket.
• Power Usage    TBA

Environmental Specifications

• Operating Temperature    5° to 40° C (41° to 104° F)
• Storage Temperature    -20° to 45° C (-4° to 113° F)
• Relative Humidity    0% to 90% non‑condensing

What's Included

• Blackmagic Media Player 10G, Welcome wallet with QR code for software download

Warranty

• 12 Months Limited Warranty
