BLACKMAGIC DESIGN
- Mã sản phẩm: SWATEMMINIBPR
- Tình trạng: Còn hàng
- Giá trên đã bao gồm VAT
- Bảo hành: 12 Tháng

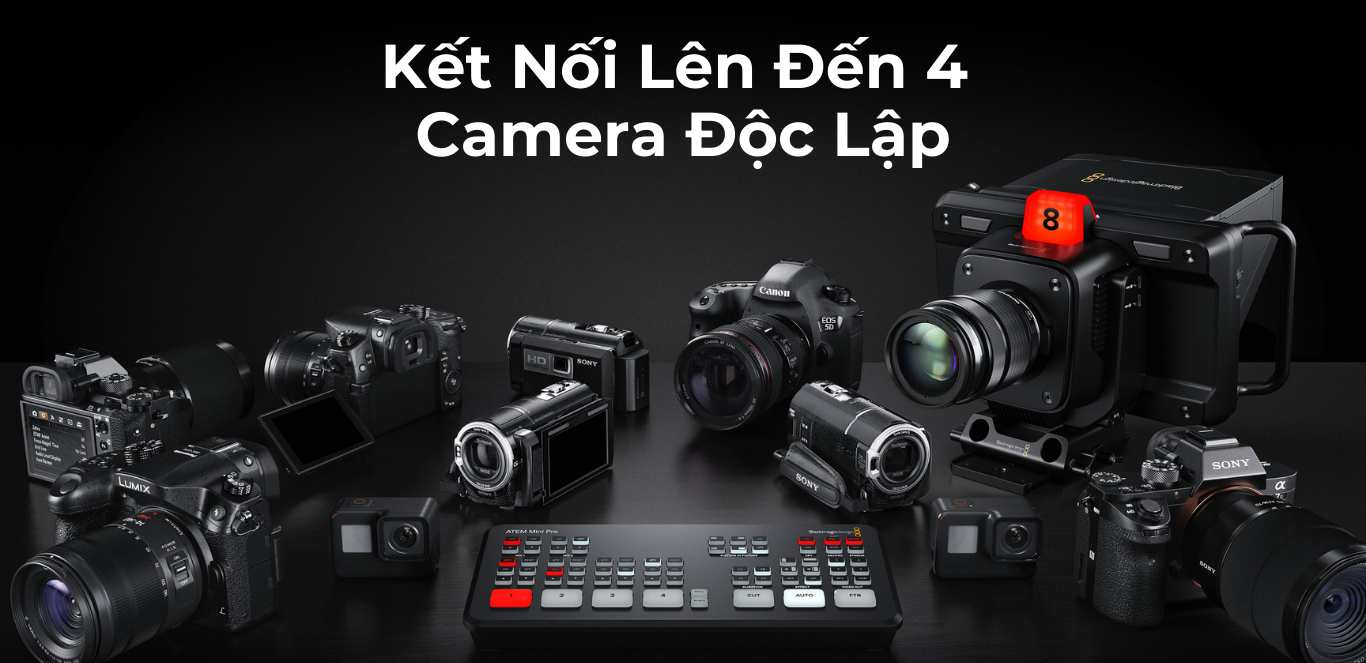

- Total Video Inputs 4
- Total Outputs 2
- Total Aux Outputs 1
- Total Audio Inputs 2 x 3.5mm stereo mini jack
- Total Audio Outputs None, embedded audio only
- Timecode Connection None

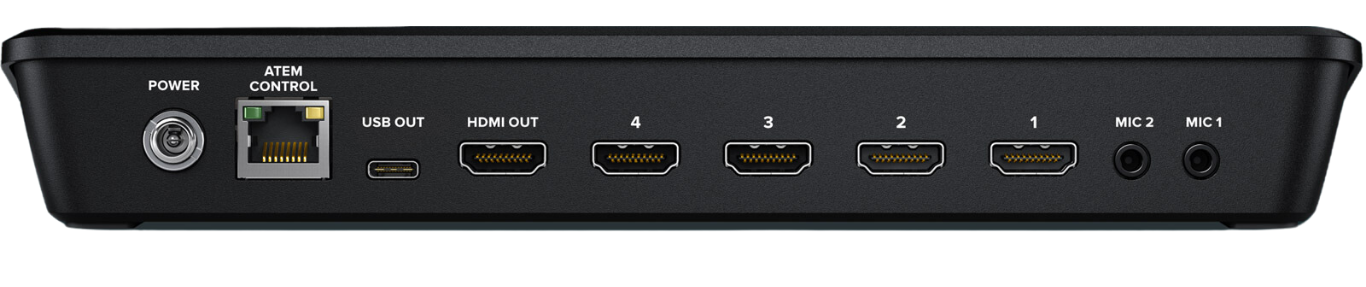

- HDMI Video Inputs 4 x HDMI type A, 10-bit HD switchable, 2 channel embedded audio
- Video Input Re-Sync On all 4 HDMI inputs
- Frame Rate and Format Converters On all 4 HDMI inputs

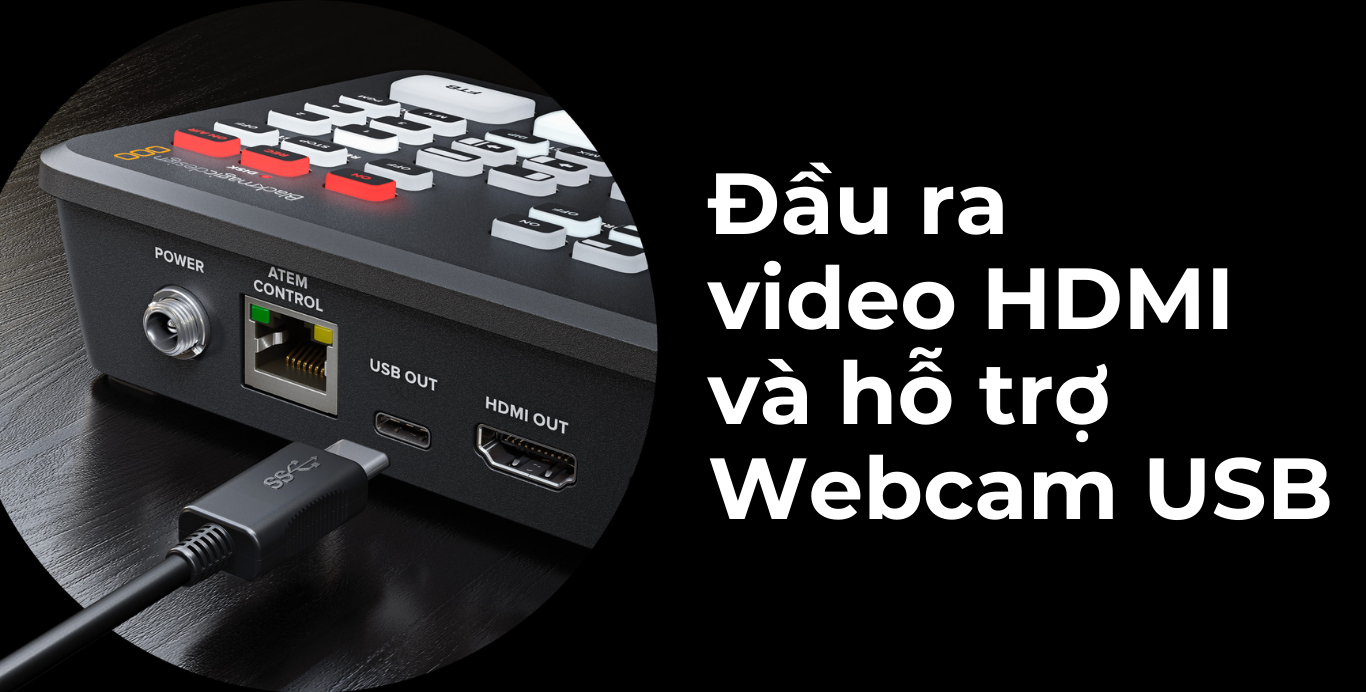

- HDMI Program Outputs 1
- Ethernet Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates, and direct or network panel connection
- Computer Interface 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates, and panel connection

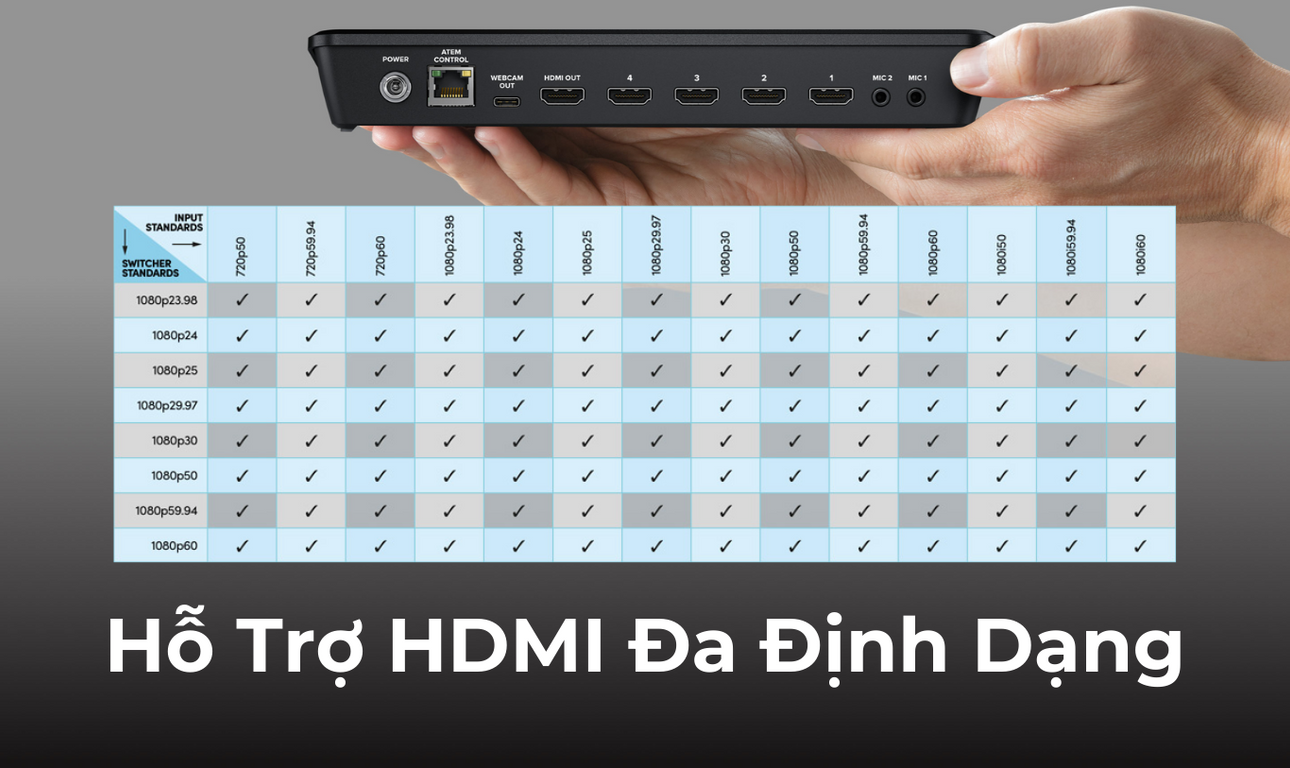

- HD Video Input Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
- HD Video Output Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- Video Streaming Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- Ultra HD Video Standards None
- Video Sampling 4:2:2 YUV
- Color Precision 10-bit
- Color Space Rec 709
- HDMI Input Resolutions from Computers 1280 x 720p 50Hz, 59.94Hz and 60Hz, 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz, 1920 x 1080i 50, 59.94Hz and 60Hz
- Colorspace Conversion Hardware based real time
- Upstream Keyers 1
- Downstream Keyers 1
- Advanced Chroma Keyers 1
- Linear/Luma Keyers 2
- Transition Keyer DVE only
- Total Number of Layers 5
- Pattern Generators 1
- Color Generators 2
- DVE with Borders and Drop Shadow 1
- Interface Minimum monitor resolution of 1366 x 768

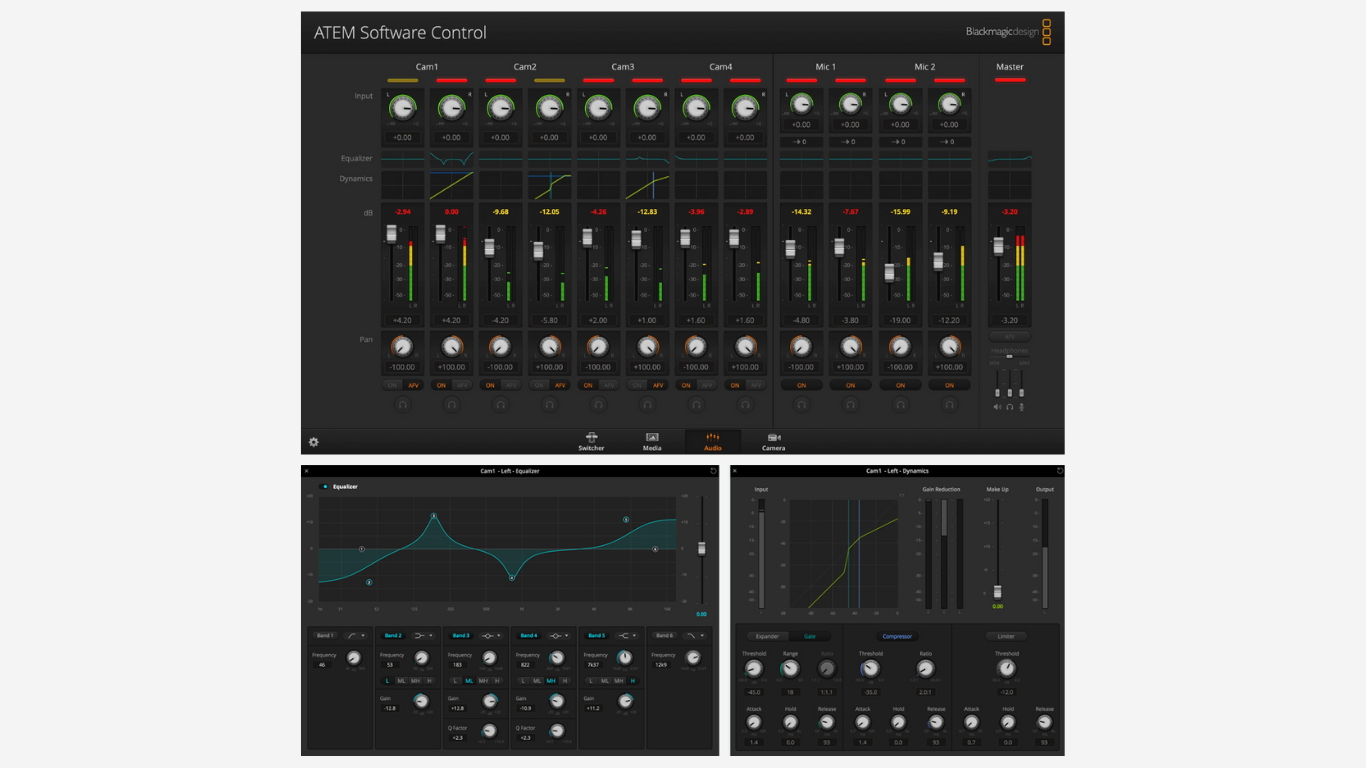

- Audio Mixer 6 input x 2 channel mixer, Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel, Level and Peak metering, Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ, Master gain control
- Analog Input Unbalanced stereo
- Analog Input Delay Up to 8 frames
- Input Impedance 1.8k
- Max Input Level +6dBV
- Mic Plug In Power Available on both 3.5mm mini jack connections

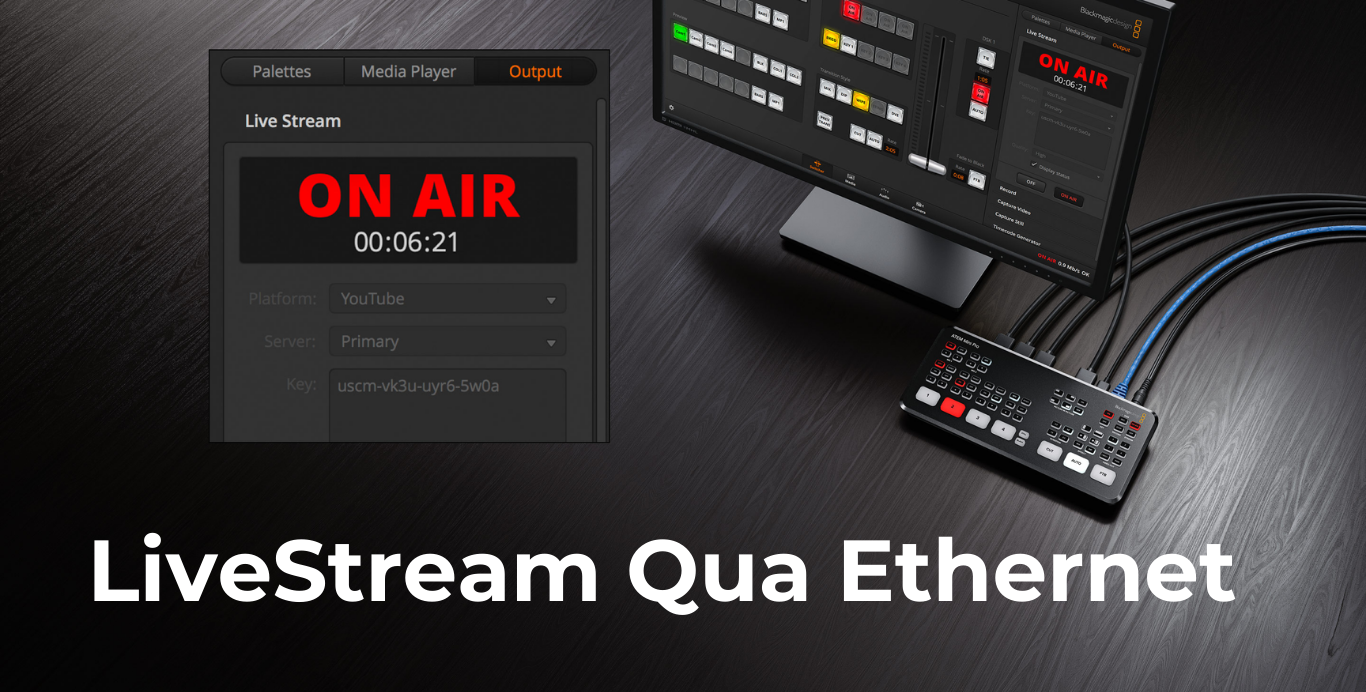

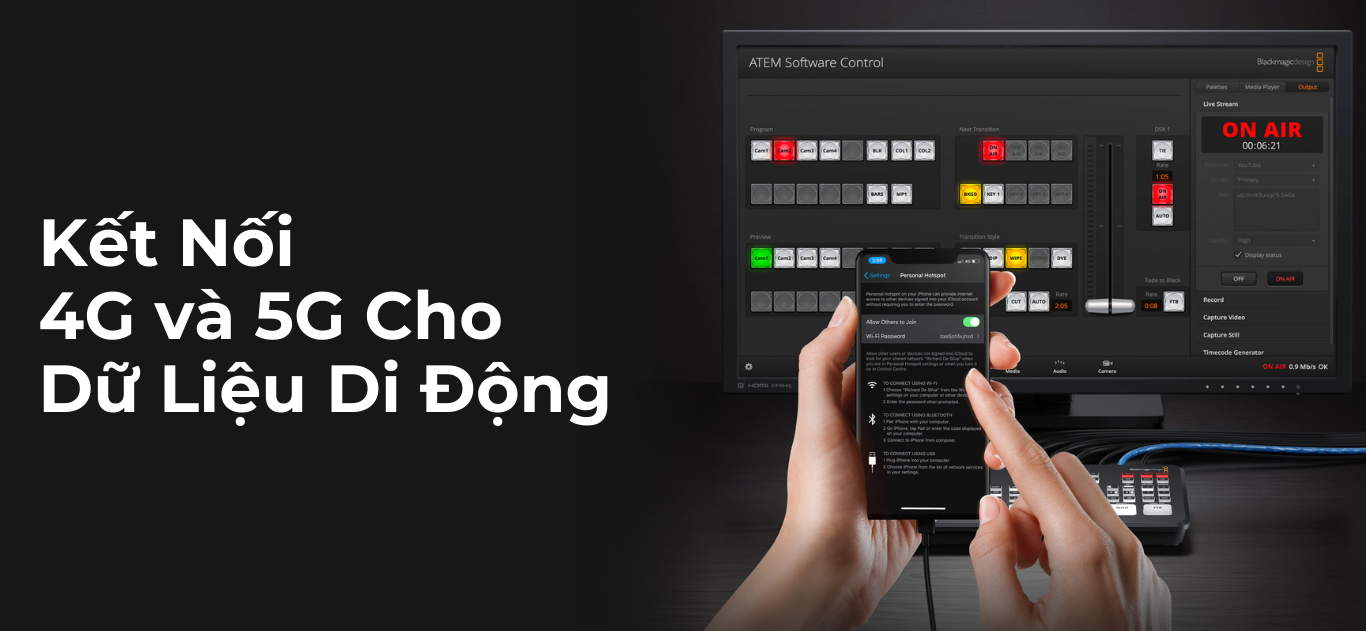

- Direct Streaming ATEM Mini Pro supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C

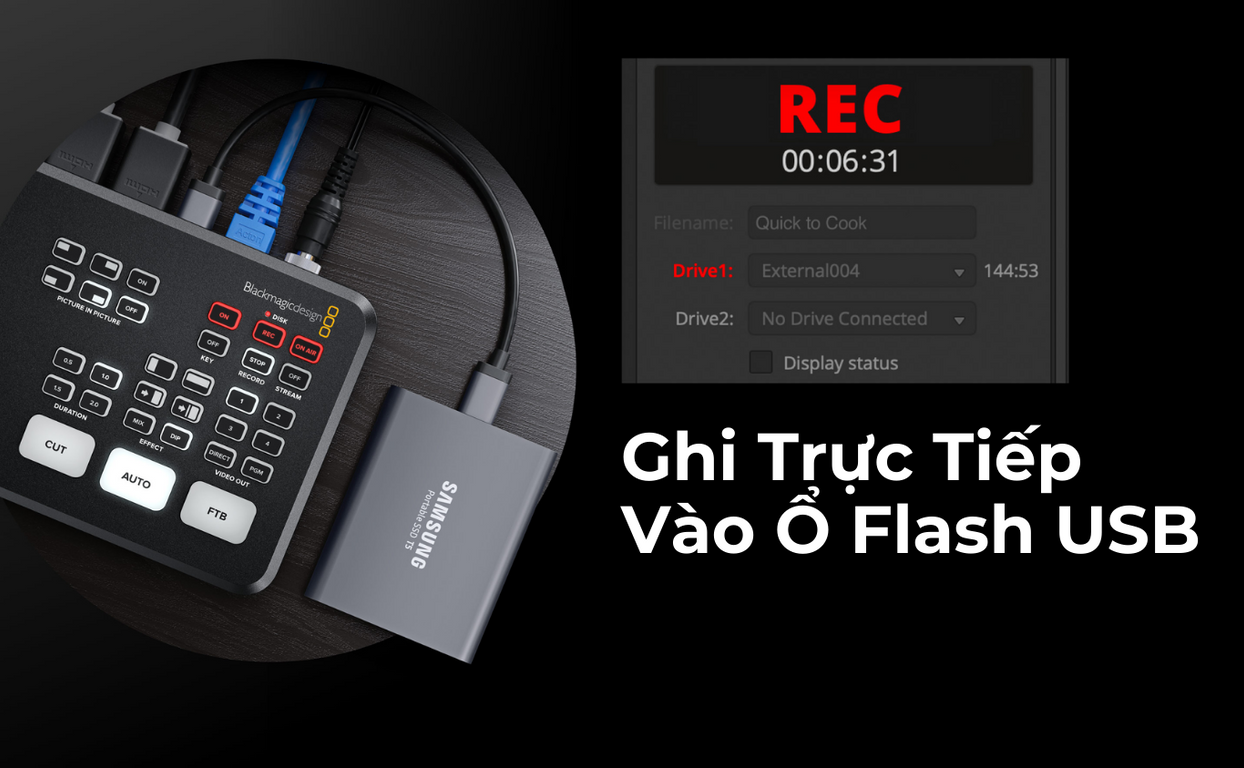

- Direct Recording 1 x USB-C 3.1 Gen 1 expansion port for external media to direct record a .mp4 H.264 with AAC audio at the ATEM video standard
- Media Format Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system

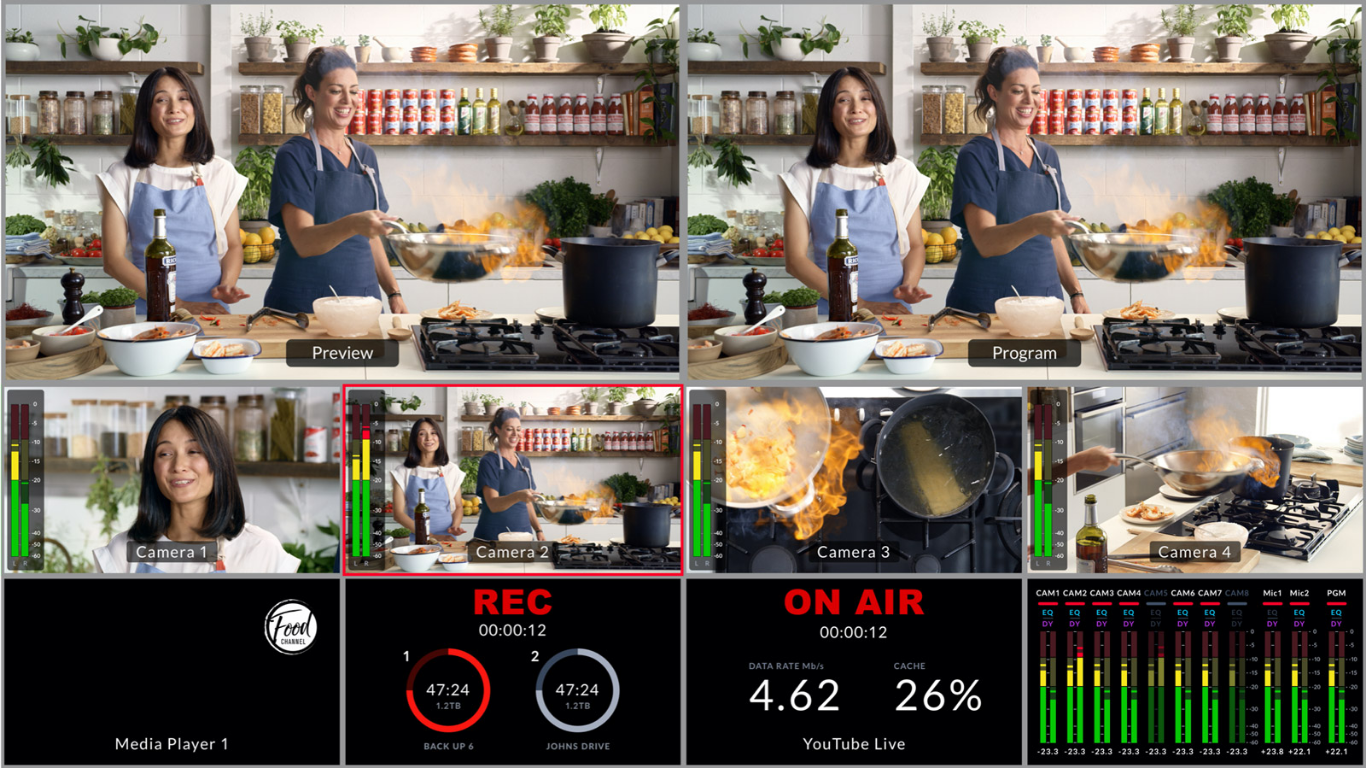

- Multi View Monitoring 1 x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status, Recording Status and Audio Meters
- Multi View Video Standard HD
- Media Players 1
- Channels Fill and key for each Media Player
- Media Pool Still Image Capacity 20 with fill and key
- Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF

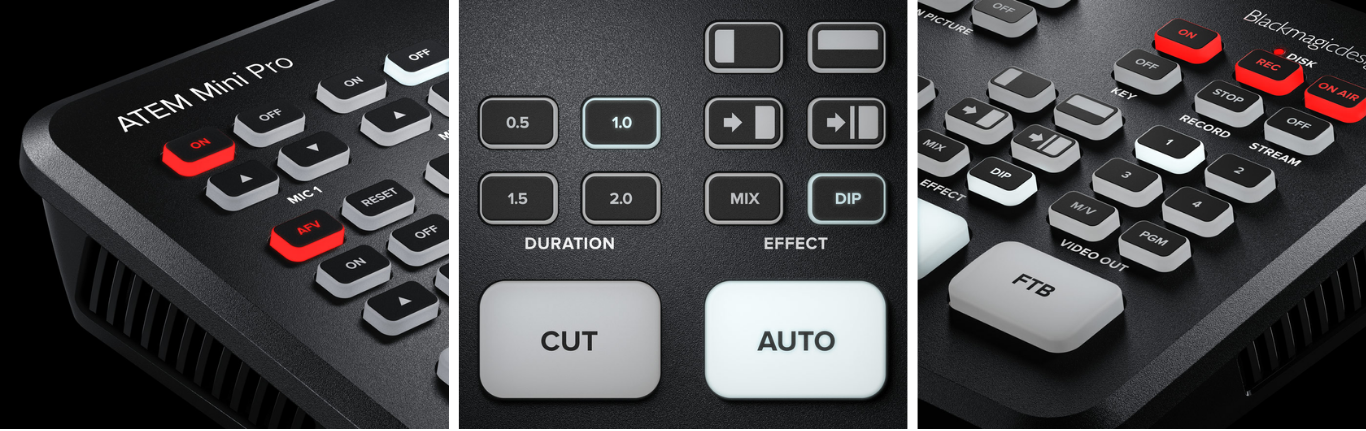

- Control Panel Built in control panel. Software control panel with camera control included. Supports optional hardware panel
- Control Panel Connection Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro also supports direct USB-C connection. Ethernet or USB-C used for updating the software

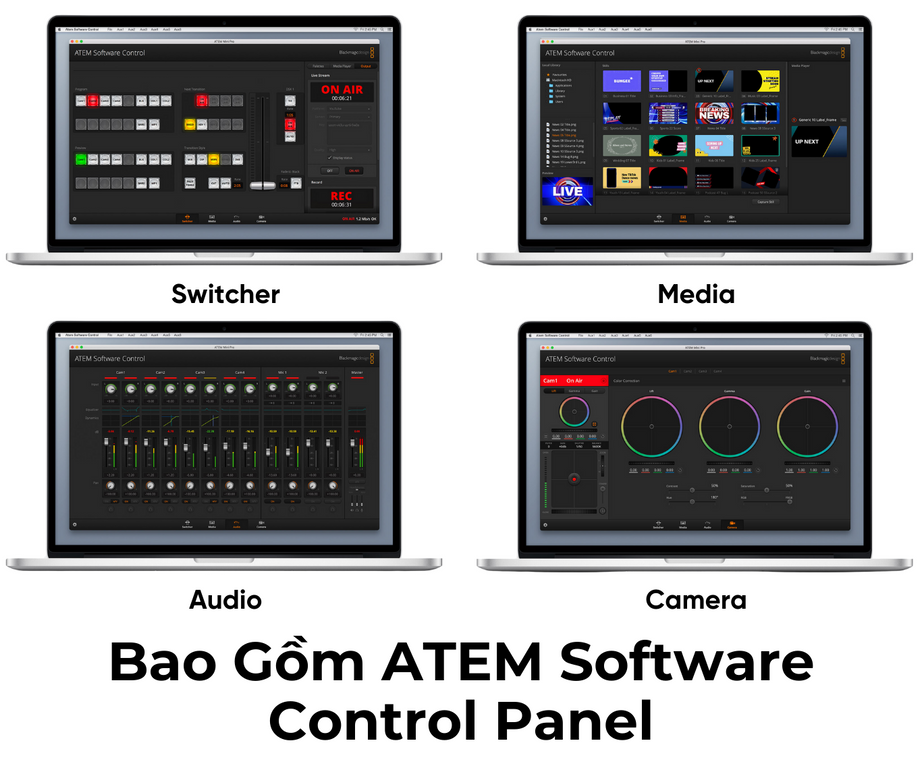

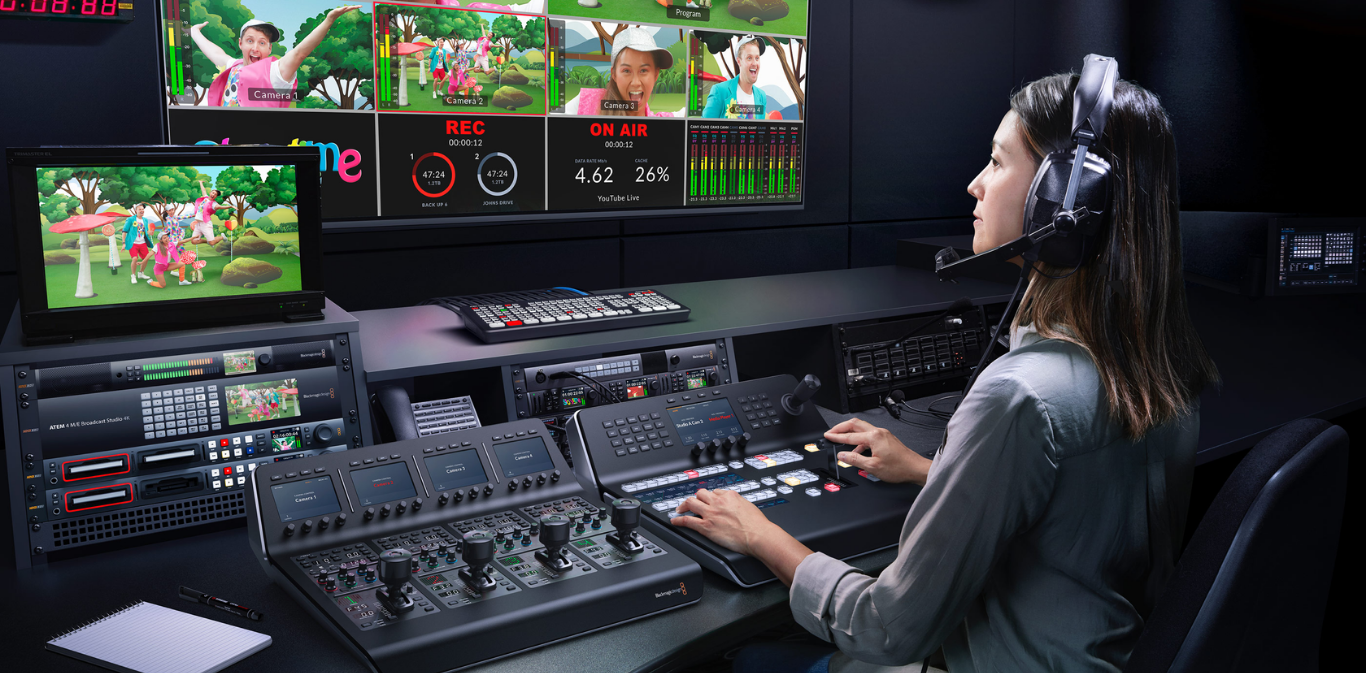

- Control Panel Compatibility Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast Panel
- Control Panel Included ATEM Software Control Panel included free for Mac 10.14 Mojave, Mac 10.15 Catalina or later and Windows 10 64 bit only
- Software Updates Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility
- Configuration Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis
- Operating Systems Mac 13.0 Ventura, Mac 14.0 Sonoma or later, Windows 10 and 11
- Power Supply 1 x External 12V power supply
- Power Usage 30W
- Operating Temperature 5° C to 40° C (41° - 104° F)
- Storage Temperature -10° to 60° C (14° to 140° F)
- Relative Humidity 0% to 90% non-condensing
- Included ATEM Mini Pro, External 12V DC power supply with international socket adapters
- Warranty 12 Months Limited Manufacturer's Warranty
